GEARBOX
FAST FIND
|
|
|
|
|
|
B2666
Ratio 1:1.93 Increase
1 3/8" x 6 spline input
|
|
|
B9266
Ratio 1:1.93 Increase
1 3/8" x 6 spline input
|
|
B2667 Ratio
1:1.46 Increase
B6667 Ratio 1:1.93 Increase
B6668 Ratio 1:1
1 3/8" x 6 spline input |
|
|
|
|
|
| |
|
|
|
|
B4668 Ratio
1:1.46
B4667 Ratio 1:1.92
B9208 Ratio 1:1 |
|
B8668
Ratio 1:1.467 Increase
B8673 as for B8668 except REVERSE rotn.
B8670 1.188:1 Reduction (1000 rpm pto)
1 3/4"x 20 Spline Input - 60mm Outp.
B8672 as for B8670 except REVERSE rotn. |
B9668 Ratio
1.2:1 Reduce (1000 rpm PTO)
1 3/4"x 20 Spline Input. 3" Dia Output. |
|
|
|
|
| |
|
|
|
|
B1566 RATIO
1:2.83 INCREASE
INPUT SHAFT 1 3/8"x 6 Spline.
OUTPUT.1 1/4"Round.1/4" keyway |
|
B1567 RATIO
1:2.83 INCREASE
INPUT SHAFT 1 3/8" x 6 Spline
OUTPUT. 1 1/4" Round 1/4" keyway |
|
B1550 Used
on small U.S.Mowers
CENTRE BOLT BLADE FIXING |
|
|
|
|
|
| |
|
|
|
|
B9210 Ratio
1:1.93. Through=direct
1 3/8"x 6 Spline Through Shaft |
|
B9211 Ratio
1:1.93. Through=direct
1 3/8"x 6 Spline Through Shaft. |
|
B5667 Ratio
1:1.93 Through=direct
1 3/4"x 20 Spline Through Shaft |
|
|
|
|
|
| |
|
|
|
|
B7513 Ratio
1:1
1 3/8"x 6 Spline Input & Output. |
|
B8513 Ratio
1:1.5 Increase
1 3/8"x 6 Spline Input & Output. |
|
B8669 Ratio
1:1
B8675 Ratio 1:1.33 Increase
1 3/4"x 20 Spline Input & Output. |
|
|
|
|
|
| |
|
|
|
|
B8671 Ratio.Lower
1.188:1 Reduction
to suit 1000rpm PTO
B8674 Ratio Lower 1:1.467 Increase
Through Shafts 1:1 |
|
B8514 Ratio
1:1
All shafts 1 3/4" x 20 spline |
|
B9212 1:3.75
Increase
SAE Pump Mount. |
|
|
|
|
|
| |
|
|
|
|
B1666 Ratio
2.92:1.Clockwise Auger
Input 1 3/8"x 6 Spline. Output 2"Dia |
|
B4666 Ratio
3.18:1 Clockwise Auger
Input 1 3/8"x 6 Spline. Output 2" Dia |
|
B5666 Ratio
4:1 Clockwise Auger
Input 1 3/8"x 6 Spline. Output 2" Dia. |
|
|
|
|
|
| |
|
|
|
|
B1551 (Hub
as B2667 Gearbox)
Motor 4 1/2" Hole cents x 14 Spline |
|
|
B1568 RATIO
1:1
INPUT SHAFT 1 3/8" x 6 Spline
Output Shaft 25mm with 7mm Holes
Mount: 90mm Hole centres |
|
|
|
|
|
| |
|
|
|
|
B1569 Ratio
1:1
Input/Output 7/8"dia.1/4"straight key
Mount: 79mm x 73mm Hole centres |
|
B1570 Ratio
1:1
Input 1 3/8" x 6 Spline
Output 1" Dia with 1/4"straight key
Mount: 4.1/4" Hole Centres. |
|
B1571 Ratio
1:1
Input / Output 1 3/8" x 6 Spline
Mount:4 1/2" Hole Centres |
|
|
|
|
|
| |
|
|
|
|

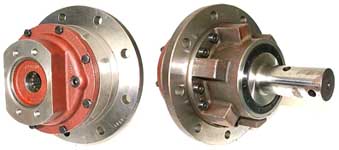

B8666
Ratio 3.75:1
Input Hub: 14 Spline
Output Shaft: 2" dia. round |
|
|
|
|
|
|
