Specials
|
|
| |
|
75 HP Gearbox (1:1.46 & 1:1)
Part No. B2667 - 1:1.46
ratio
Part No. B6668 - 1:1 ratio |
|
NEXT
PAGE FOR B6667 1:1.93
RATIO 75HP GEARBOX
|
|
APPLICATIONS
|
SPECIFICATIONS
|

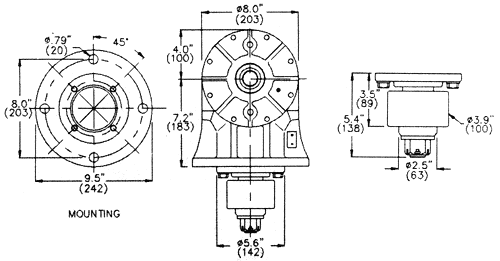

IDENTIFICATION |
|
Rotary Cutters
|
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT: |
60-45-10
Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-90, 38oz, 1.12l
82 lbs, 37.2kg
1 3/8" x 6 spline |
|
1:1 Ratio = Assembly No. 250211
1.46:1 Ratio = Assy. No 250184 |
|

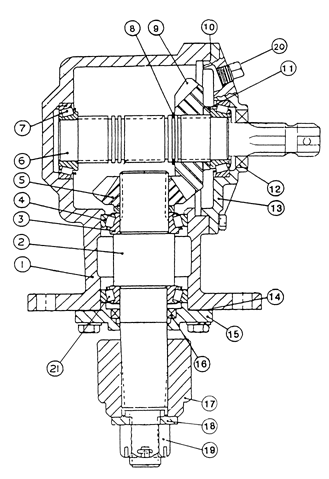

SPARE PARTS
|
|
REF
|
PART No.
|
DESCRIPTION
|
|
1
|
B6916
|
Main Housing |
|
2
|
B6912
|
Output Shaft |
|
3
|
B91
|
Bearing Cone
Top & Bottom |
|
4
|
B90
|
Bearing Cup Top |
|
5
|
B6677
|
13 tooth output
Pinion suit B2667 (1.46:1 ratio) |
|
B6915
|
17 tooth input/output
Pinion suit B6668 (2 used) |
|
6
|
B6911
|
Input Shaft (1
3/8" x 6 splines) |
|
7
|
B65
|
Cup & Cone
assembly (2 used) |
|
8
|
B7389
|
Retaining Ring |
|
9
|
B59
|
19 tooth input
pinion suit B2667 (1.46:1 ratio) |
|
B6915
|
17 tooth input/output
Pinion suit B6668 (2 used) |
|
10
|
B6675
|
Shim gasket (use
qty as req.) |
|
11
|
B7390
|
Spacer (B2667
gearbox only) |
|
12
|
B2955
|
Input Seal |
|
13
|
B6918
|
Input Cap |
|
14
|
B6837
|
Shim gasket (use
qty as req.) |
|
15
|
B79
|
Lower Seal Housing |
|
16
|
B2956
|
Output Seal |
|
17
|
B4158
|
Hub |
|
18
|
B7387
|
Flat Washer (1"
ID) |
|
19
|
B7388
|
1" x 14
TPI Castellated Nut |
|
20
|
B7687
|
Breather Plug |
|
21
|
B93
|
Bottom Bearing
Cup |
|
|
|
|
