50 HP Post Hole Digger
Gearbox
|
Part No. B4666 - 3.18
: 1 ratio
|
|
APPLICATIONS
|

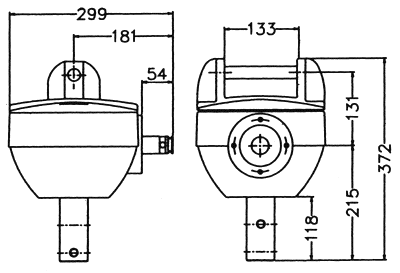

SPECIFICATIONS
|
|
Post Hole Diggers
|
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT:
OUTPUT SHAFT: |
60-45-10
Nodular
UNS G10450
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-90, 68oz, 2.01L
58 lbs,26.4kg
1 3/8" x 6 spline
2" OD - 1/2" cross drilled |
|
|

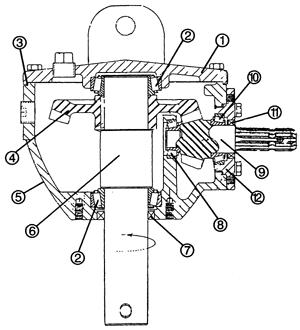

SPARE PARTS
|
|
REF
|
PART No.
|
DESCRIPTION
|
|
1
|
B84
|
Top
Housing |
|
2
|
B99
|
Cup & Cone
(2 req) |
|
3
|
B1188
|
Top Shim Gakets
(qty as req) |
|
4
|
B83
|
Output Gear |
|
5
|
B98
B1192
|
Main Housing
suit 1 1/4" Round Input Shaft
Main Housing suit 1 3/8" x 6 spline Input Shaft |
|
6
|
B82
|
Output Shaft |
|
7
|
B72
|
Lower Seal |
|
8
|
B85
|
Inner Pinion
Cup & Cone |
|
9
|
B88
B1189
|
Pinion for models
with 1 1/4" dia round input shaft
Pinion for models with 13/8" x 6 spline input shaft |
|
10
|
B86
B777
|
Outer Bearing
suit 1 1/4" round input shaft
Outer Bearing suit 1 3/8" x 6 spline input shaft |
|
11
|
B87
B1190
|
Input Seal suit
1 1/4" round input shaft
Input Seal suit 1 3/8" x 6 spline input shaft |
|
12
|
B89
B1191
|
Front Cap suit
1 1/4" round input shaft
Front Cap suit 1 3/8" x 6 spline input shaft |
|
|
|
|
