 Please note the model or serial number
of your machines maybe needed when ordering parts.
Agparts are the Western Australian distributors
of original Jetstream Parts

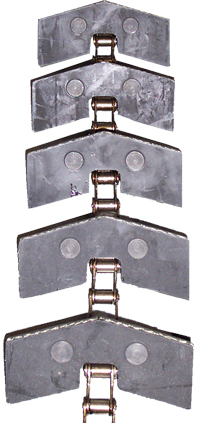

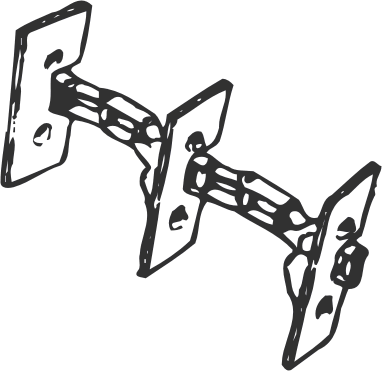

| 5 in 1 Bin Chains: |
 |
|
| Elevator Paddle avaliable
in: 49,59 and 10 |
| Side Discharge avaliable
in: 15 |
| 5 in
1 Bin Elevator kits: |
Avaliable
with: 49
(Standard) or 59 (Extended) Paddles. Chain included.
Only Agparts Warehouse's 5 in 1 Elevator cases are
multi fit, ie front and rear use same casing and have a clean out
door on the underneath side of the casing. |
|
|

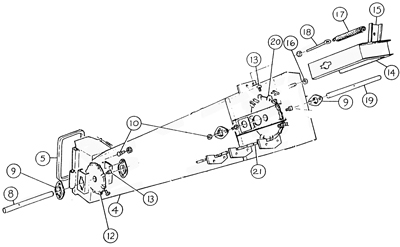

4)
1X HIGH DISCHARGE CASE (STANDARD or EXTENDED)
8) 1X 5AW53285 SHAFT TO SUIT BOTTOM ELEVATOR SPROCKET
12, 13) 1X 5AW22516 ELEVATOR DRIVE SPROCKET BOTTOM 9/1BT
S32 3/4
20, 13) 1X 5AW22516 ELEVATOR DRIVE SPROCKET TOP 9/1BT S32
3/4
14) 1X 5AW53287 HEAD YOKE
15) 1X 5AW53287/2 YOKE LEVER
16) 1X 5AW05310N NUT
5) 115cm 5AW53291 SQUARE RUBBER EXTRUSION
17) 1X 5AW21070 EXTENSION SPRING
18) 1X 5AW01009N2 EYE BOLT ASSEMBLY
19) 1X 5AW53286 SHAFT TO SUIT TOP ELEVATOR
SPROCKET
9, 10) 4X 5AW06158 BEARING KIT ELEVATOR SPROCKET SHAFTS (1BEARING
2 PLATES)
21) 1X 49 OR 59 PADDLE CHAIN
1X CAM-4031 CONTACT CEMENT (25ML) TUBE |

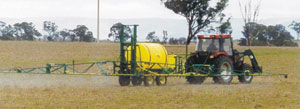

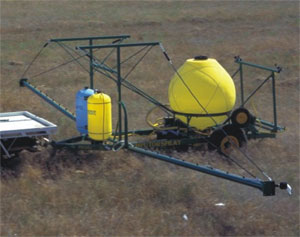

| Workmate
Broadacre Crop Sprayers: |
|
|
| Jetstream
sprayers are well known for their simplicity and ease of operation
and you don’t get much simpler than the Workmate. Manual fold
booms, manual controls and the convenience of 4WD towing makes the
Workmate an excellent value for money sprayer. |
|
- 12 & 18 metre manual fold booms.
- Sprung suspension booms(5 year
structural warranty).
- 120 degree fan angle stainless
steel nozzles for superior coverage.
- Non-drip tees and quick release
nozzle nuts.
- 16 inch boom wheels (18 metre
booms only).
- 1000 litre poly tank. U.V.
stabilised spherical tank for perfect agitation and drainage.
- Ground drive, positive displacement
metering system for accuracy to within plus or minus 1%.
- Pump flow - 36LPM (12 metre
boom) - 55LPM (18 metre boom).
- Twin 120 mesh (130 micron)
stainless steel filtration.
- 80 mesh nozzle filters.
- Single sided foam marker.
- End of boom foam generator.
- Foam marker bellows air supply.
- 60 litre foam concentrate tank.
- Manual control foam marker.
- Spray control - Manual valve
mounted at pump.
- Large diameter colour coded
pressure gauge.
- Chemical suction spear with
drum flush.
- 60 litre fresh water tank with
tap for operator safety and convenience.
- Single axle (fixed).
- Single 13” x 9” flotation tyres.
- Brady Hub - Disengages pump
for transport.
AVAILABLE OPTIONS
- Electric spray control kit
- Includes solenoid and control console.
- Electric control dual sided
foam marker. Left/right switched from cab.
- 12 volt stationary agitation
kit. Including control console.
- Sprayline flush kit. Uses the
60 litre fresh water tank to flush the spraying system out.
- Heavy duty steel mudguards
(single axle).
|

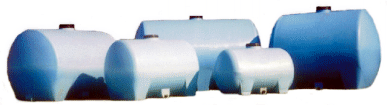

Spay Tanks: Available in different sizes and makes
|
|
