75 HP Post Hole Digger Gearbox
|
Part No. B5666 - 4 : 1 ratio
|
|
APPLICATIONS
|

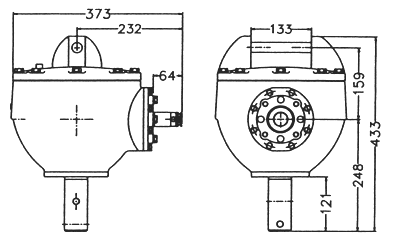

SPECIFICATIONS
|
|
Post Hole Diggers
|
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT:
OUTPUT SHAFT: |
60-45-10
Nodular
UNS G10450
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-90, 86oz, 2.54L
111 lbs,50.5kg
1 3/8" x 6 spline
2" OD - 1/2" cross drilled |
|
|

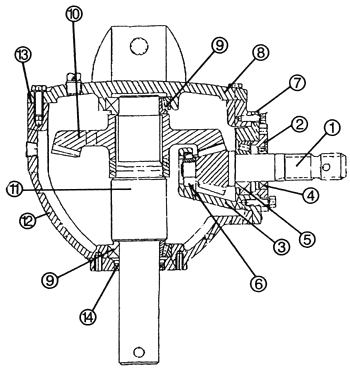

SPARE PARTS
|
|
REF
|
PART No.
|
DESCRIPTION
|
|
1
|
B1184
|
Input Shaft -
1 3/8" x 6 spline |
|
2
|
B1185
|
Outer Cap |
|
3
|
B773
|
Pinion Support
Housing |
|
4
|
B2953
|
Input Seal |
|
5
|
B777
|
Outer Pinion
cup & cone |
|
6
|
B85
|
Inner Pinion
Cup & Cone |
|
7
|
B6951
|
Shim Gaskets
(qty as req) |
|
8
|
B6945
|
Top Cover |
|
9
|
B99
|
Cup & Cone
(2 req) |
|
10
|
B6943
|
Output Gear |
|
11
|
B6942
|
Output Shaft |
|
12
|
B6941
|
Main Housing |
|
13
|
B6944
|
Top Shim Gasket
(qty as req) |
|
14
|
B72
|
Output Seal |
|
|
|
|
