Specials
|
|
| |
|
Hay & Silage Spikes
Tines
for silage and manure forks,

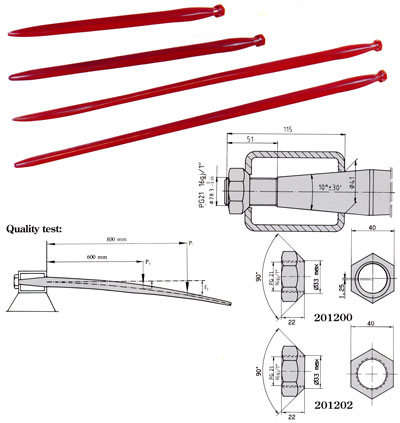

Conus II
|
Tines, Conus
with eccentric nut No.201200
|
|
Number
|
Length
|
Weight
|
Nut
|
|
24 11 60 with point
|
820mm
|
6.0kg
|
M28,3
|
|
24 11 61 with point
|
980 mm
|
6.7kg
|
M28,3
|
|
24 11 66 with point
|
1100 mm
|
7.2kg
|
M28,3
|
|
24 11 62 with point
|
1240 mm
|
8.2kg
|
M28,3
|
|
24 11 63 with point
|
1400 mm
|
8.5kg
|
M28,3
|
Bold - Standard Spike
Specifications after heat-treatment:
Tensile strength: Rm 1550 N/mm2 (155 kp/mm2)
Yield point: Rp0,2 1400 N/mm2 (140 kp/mm2)
Tightening torque for nut 650-700 Nm-(470-505 ft lb)
|
Distance from
the mounting tube
|
Typical
values:
|
|
Max. load for no permanent set
|
Deflection
|
|
Conus II 600mm
Conus II 800mm
|
P1 = 15500 N
P2 = 11600 N
|
f1 = 62mm
f2 = 127mm
|
Extra
heavy tine for use on forks
for bigger tractors and loaders,

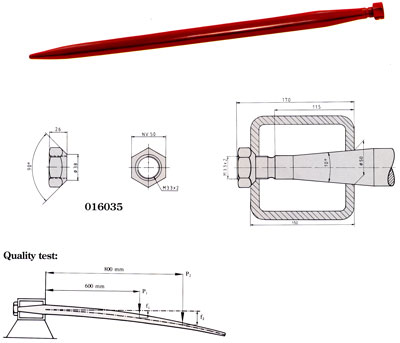

Conus III
|
Tine, Conus
III 055 with coned nut No. 016035
|
|
Number
|
Length
|
Weight
|
Nut
|
|
24 11 26 with point
|
1400mm
|
22 kg
|
M33
|
Specifications after heat-treatment:
Tensile strength: Rm 1550 N/mm2 (155 kp/mm2)
Yield point: Rp0,2 1400N/mm2 (140 kp/mm2)
Tightening torque for nut 1000-1100 Nm 9740-810 ft lb,
when used with sleeve 221098
|
Part No.
|
Distance from
the mounting tube
|
Typical
values:
|
|
Max. load for no permanent set
|
Deflection
|
|
24 11 26
Conus III
|
600mm
800mm
|
P1 = 28000 N
P2 = 21000 N
|
f1 = 65mm
f2 = 140mm
|
Special
tines for silage and manure
forks,Conus II
|

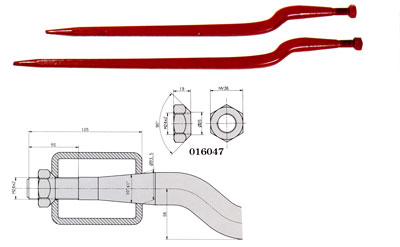

Cranked tines,
Conus I with coned nut No. 016047
|
|
Number
|
Length
|
Weight
|
Nut
|
|
22 11 95
|
830mm
|
4.2kg
|
M24
|
Specifications after heat-treatment:
Tensile strength: Rm 1559 N/mm2 (155kp/mm2)
Yield point: Rp0,2 1400 N/mm2 (140 kp/mm2)
Tightening torque for nut 400-450 Nm-(290-325 ft lb)

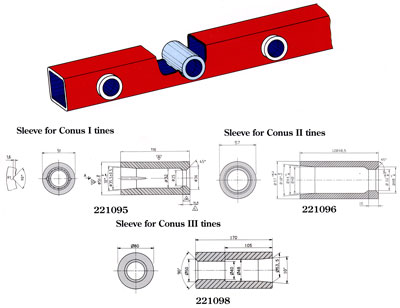

Sleeves
for tubes
Sleeves enable tines to be fully tightened without
collapsing the mounting tubes, thus preventing
tines becoming loose.
|
Tine Sleeves
|
|
Sleeve to fit:
|
Number
|
|
Conus I Tines
|
221095
|
|
Conus II Tines
|
221096
|
|
Conus III Tines
|
221098
|
|
|
