Specials
|
|
| |
|
MF
Dual Clutch Components

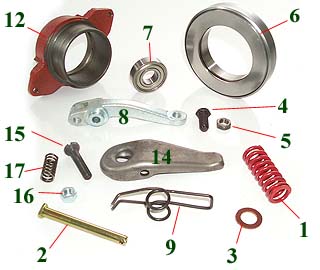

NOTE: Parts shown are BARE-Co parts - original part numbers
are shown for reference only
|
|
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B2403
|
886396M11810813M91
|
Red Spring
Replaces all
Note quantity used
|
MF35-135-148-240-250-350-550
Use 6 Springs
MF65-165-168-265-275-355 Use 9 Springs
MF360-365-375-565-575-675 Use 9 Springs
MF175-185-188-285-290-390-590-690 12 Springs
|
|
2
|
B2338
|
828597M2
|
"D" head pin
|
All MF Dual Clutches
|
|
3
|
B2346
|
175375M1
|
Insulated Washer
|
All MF tractors with coil spring
dual clutch
|
|
4
|
B2333
|
1853164M1
|
Adjustment Bolt
|
|
5
|
B2335
|
353430X1
|
Nut (Adj Bolt)
|
|
6
|
B2329
|
892862M1
|
Thrust Bearing
|
|
7
|
B2321
|
195174M1
|
Pilot Bearing
|
|
8
|
B2331
|
1810821M91
|
Finger
|
All 11" MF (coil spring) dual
clutches
|
|
B2350
|
1810816M91
|
All 12" MF (coil spring) dual
clutches
|
|
9
|
B2351
|
887910M1
|
Finger Spring
|
|
B2337
|
1810820M91
|
All 11" MF (coil spring) dual
clutches
See APPLICATIONS
|
|
10
|
B2349
|
3620410M91
|
Main Drive plate
H.D. Metal back facing
|
|
B2359
|
3599462M92
|
Main Drive Plate
H.D. Metal back facing
12" x 1 1/8" x 10 splines
|
Most 12" MF (coil spring) dual
clutches
Start at this APPLICATIONS page.
|
|
11
|
B2340
|
899823M91
|
9" PTO Plate
|
All 11" MF dual clutches
|
|
B2354
|
887900M1
|
10 spline
10" PTO Plate
|
Early models with 12" dual
clutch
See APPLICATIONS
|
|
B2888
|
1865836M91
|
25 spline
10" PTO Plate
|
Late models with 12" dual clutch
See APPLICATIONS
|
|
12
|
B2792
|
183129M2
|
Bearing
Carrier
|
54mm i.d.
|
All with Standard transmission
|
|
B487
|
886727M2
|
56mm i.d.
|
All with Multipower transmission
|
|
13
|
B2348
|
899971M91
|
11" Main Plate
|
MF35 petrol - MF135 petrol
MF35 - 4 cyl diesel
Old style Belleville spring clutch
(No coil springs)
|
|
14
|
B2330
|
1810823M91
|
Finger
|
|
15
|
B2332
|
181121M1
|
Adjust Screw
|
|
16
|
B2334
|
353917X1
|
Lock Nut
|
|
17
|
B2336
|
1810812M91
|
Finger Spring
|
|
|
