Application
|
Clutch Kit
|
Clutch Assembly
|
Main Drive Plate
|
PTO Plate
|
Thrust Brg.
Brg. Carrier
|
Flywheel Pilot Brg.
|
MF135
to ser. no.439191
MF148 to ser. no.605134
12" clutch with coarse 10 spline PTO |
B9255
*
|
B2909
=3620407M91
(Main plate not incl.)
|
[NOT included in clutch assemblies
]
B2359
=3599462M91
12" x 1 1/8" x
10 splines
dish hub
|
B2354
=887900M1
(incl. in clutch assy.)
10" x 1 3/4 x 10 splines
|
Bearing
B2329
=892862M1
Carrier
B2792
Std. Trans
54mm I.D.
=183129M2
B487
Multi - Power
56mm I.D.
=886727M2
|
|
B2321
=828123M1
195174M1
|
MF165
(New Series) up to ser no.130773 (12" clutch)
MF168 to ser no. 255118
MF175-178 from 729575
MF185 to ser no. 317618
MF188 to ser no. 358839
12" clutch with coarse 10 spline PTO |
B9256
*
|

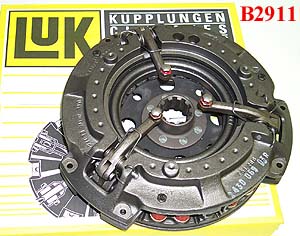

B2911
=3620408M91
(Main plate not incl.)
|
|
MF135 from ser.439192
MF148 from ser.605135
MF240-245-250-550
12" clutch with fine 25 spline PTO
|
B9257
*
|
B3719
=3599463M91
6 red springs
Main plate not incl.
|
B2888
=3620417M91
(incl. in clutch assy.)
10" x 1 5/8" x 25 splines
|
|
MF165 from ser. 130774
with 12" clutch
MF168 from ser. 255119
MF265-275-565-575-675
fine 25 spline PTO
|
B9258
*
|
B3700
=3610271M91
9 red springs
Main plate not incl.
|
|
MF185 from ser. 317618
MF188 from ser. 358839
MF285-290-590-690
fine 25 spline PTO
|
B9259
*
|

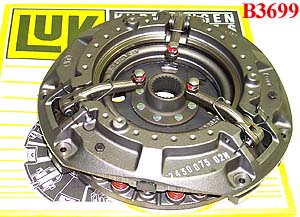

B3699
=3610268M91
12 red springs
Main plate not incl.
|
|
MF350
|
B9260
*
|
B3719
6 red springs
=
3599463M91
|
[NOT included in clutch assemblies]
B272
=3599460M92
Organic sprung hub replaces Rigid Hub
12" x 1 1/8" x 21 splines
|
|
MF355-360-365-375
|
B9262
*
|
B3700
9 red springs
=
3610271M91
|
|
MF390
|
B9264
*
|
B3699
12 red springs
=
3610268M91
|
Coil spring dual clutches are
factory pre-set.
12" flywheel pot depth = 39.75mm.
If PTO not releasing look for damage to PTO plate hub during tractor
assembly.
Reduce PTO clearance from std .085" if necessary through inspection
cover
|
|
* Full kit includes
clutch assembly, plates and all bearings shown.
|
