Type 13" (330mm) Split Torque Clutches
NOTE: Parts shown are BARE-Co parts - original part numbers are shown
for reference only
|
Application
|
Clutch Kit
|
Clutch Assembly
|
Clutch Plate
|
Thrust Bearing
|
Pilot Bearing
|
MF390T
- 399 with coil spring single clutch (illustrated)
MF698
French model only with 21 spline main plate (pot flywheel)
MF699 MF1004/T
with 21 spline plate |
B9273
*
|
B7534
=
3599492M91
|
B8535
13" x 1 1/8"
21 splines
Ceramic
Sprung Hub
10mm Thick
|
B2329
=
892862M1
|
B2321
=
828123M1
195174M1
|
| MF698
UK model only with 10 spline main plate (flat
flywheel) |
N/A
|
T.B.A.
|
B9034
13" x 1 1/8"
10 splines
Ceramic
Rigid Hub
|
MF698T
(10 spline main plate)
MF 1004/T
with 10 spline main plate |
B9275
*
|
B7534
=
3599492M91
|

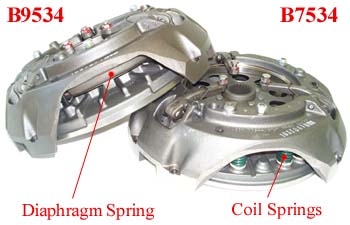

MF390T
+ 399 with diaphragm clutch [illustrated]
4245-4255-4260-4265-4270
[330mm (13") Diaphragm Clutch] |
B9276
*
|
B9534
=
3701015M91

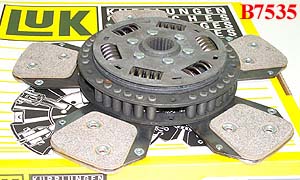

[Diaphragm Clutch]
|
B7535
13" x 1 1/8"
21 splines
Ceramic
Sprung hub
11mm Thick
|
B9303
=
3700527M1
|
|
* Full
kit includes clutch assy, plates and all bearings shown.
|
|
|
