Application
|
Pump
|
Pump Seal
Kit
|
Pump
Filter
|
Cylinder
Assembly
|
Cylinder
Seal Kit
|
Cylinder Ends
|
|
MF135-MF148
MF240 up to
ser. no. 515901
|
B298
=
773126M92
|
B297
=
18105
29M91
|
|

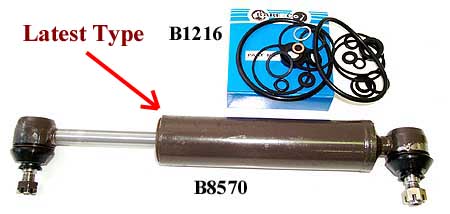

B8570
L.H. side
=3401240M91
B8571
R.H. side
=3401241M91
replacement
pist. rod/ Ball end = BARE-Co cyl. above
B8572
|
B299
=
3314663M91
B7571
suits BARE-Co
B7570
cylinder
replaceable ends
|
Orig. cyl with replaceable ends
MALE= B6806
(½" dia. thread)
=1851617M2
F.M.= B6805
(½" dia. thread)
=1851618M2
BARE-Co cyls. with replaceable ends
MALE= B7806
(11/16" dia. thread)
F.M.= B7805
(9/16" dia. thread)
|
|
MF240 from ser. no. 515902
[with B298 tank type pump as illustrated]
MF250-MF550
|
N/A
|
|
MF65-MF165 with AD4-203 engine
[pump is on L.H. side of
engine]
|
B7804
=
1884357M91
|
B6803
=
18104
17M91
|
CR447
suits PLESSEY pumps
=
1883318M1
O.D.=86mm
I.D.=27mm
CR677
suits AIRQUIP and BARE-Co
B6804 pump
=1662566M1
O.D.=74mm
I.D.=39mm
|
B1207
Laser cyl as illustrated. complete with valve block
=
3186320M92
=
3186321M91
|
B2906
=
1810437M91
|
REFER TO
PREVIOUS STEERING PAGE FOR LINKAGES
|
|
MF165 with A4-212 engine
[pump is on R.H. side of engine MF168-175-178
185-188
|
B6804
late type pump suits all models shown
2 OR 3 bolt mounting
=
897146M94
897147M95
1666726M91
1666727M92
|
|
MF265-275
285-290
|
B1216
universal seal kit suits early and late pumps
|
CR677
=
1662566M1
|
|
MF565-575
590 (675-690 2W.D.)
|
N/A
|
B302
=
1606890M91
|
|
MF154-254-264
MF174-184-194
MF274-294-363
MF393
MF353-393 up to ser. no. P06076
|
B1224
=
3539858M91
|
B804
|
N/A
|
N/A
|
N/A
|
N/A
|
|
MF3060-3065
3070-3080
3085-3090
3095
|
B1634
=
3382280M1 TANDEM

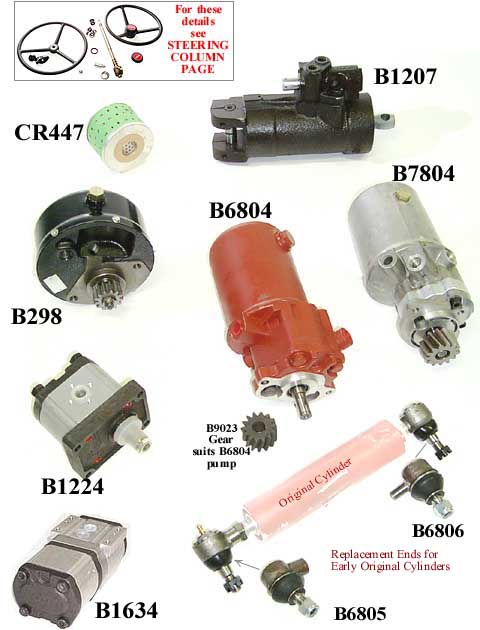

POWER STEERING / HYDRAULIC PUMP
|
