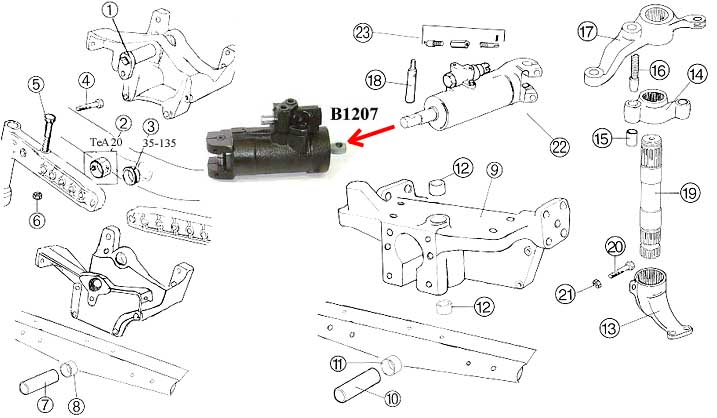

Steering
- Axle Support 2 W/D
NOTE: Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
Click here for larger picture
|
Ref.
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B930
|
825002M1
|
AXLE PIVOT PIN
|
Te20 PETROL
+ DIESEL
|
|
B932
|
183221M1
|
MF35 + early
MF135 (Radius Rod Axle) to 140128
|
|
2
|
B934
|
180344M1
|
THIN WALL SPLIT BUSH
|
Te20 + very
early (GOLD/GREY) MF35
to 4859
|
|
3
|
B933
|
182850M1
|
FLANGED BUSH (2 REQ.)
|
MF35 - early
MF 135
(Radius Rod Axle) to ser. no. 140128
|
|
4
|
B2153
|
353623X1
|
AXLE BOLT
|
|
5
|
B2152
|
353643X1
|
RADIUS ROD BOLT
|
|
6
|
B2154
|
353427X1
|
5/8" UNF NUT
|
|
7
|
B2412
|
1670939M1
|
AXLE PIVOT PIN
|
LateMF135
(no Radius Rods) from 140129 + MF148-230-240-250
|
|
8
|
B2413
|
1660114M2
|
AXLE PIVOT BUSH
|
|
9
|
B6797
|
1684301M91
|
FRONT AXLE SUPPORT
|
MF165 with
A4-212 ENG. (exhaust on R.H. side) MF168-175-178
MF185-188-265-275-285-290 565-575-590-675-690
|
|
10
|
B2981
|
898016M3
|
AXLE PIVOT PIN
|
|
11
|
B2982
|
897712M2
|
AXLE PIVOT BUSH
|
|
12
|
B3779
|
897235M1
|
STEERING SHAFT BUSH
|
|
13
|
B6800
|
1676664M91
|
ARM (Manual + Power)
|
|
14
|
B6801
|
898355M91
|
ARM (Power Steer)
|
|
15
|
B289
|
190560M1
|
BUSH (Power Steer)
|
|
16
|
B290
|
182725M1
|
PIN (Power Steer)
|
|
17
|
B488
|
1671335M1
|
ARM (Power Steer)
|
|
18
|
B489
|
898366M2
|
CYL PIVOT PIN
|
|
19
|
B6799
|
1676665M1
|
SHAFT 342mm long (use 5/8" Clamp Bolt)
|
Power Steer
MF165-168-175-178 MF185-188-265-275-285-290
|
|
B6798
|
1676666M1
|
SHAFT 290mm long (use 5/8" Clamp Bolt)
|
Manual Steer
MF165-168-175-178 185-188-265-275-285-290 Power
Steer MF565-575-590 675-690
|
|
20
|
B2153
|
353623X1
|
5/8" x 3" H.T. BOLT
|
Suits late type steering shafts shown above.
|
|
21
|
B2154
|
353427X1
|
5/8" UNF NUT
|
|
22
|
B1207
|
3186320M92
|
STEERING RAM ASSY.
|
MF165-168 +
MF175/178
(from ser. no. 724936) MF185-188-265-275-290
|
|
23
|
B9046
|
|
VALVE LINKAGE KIT
|
|
|
