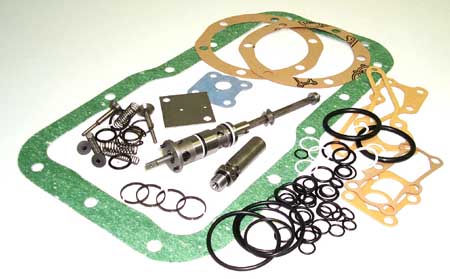

MF Standard Hydraulic Repair Kits

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

INCLUDE VALVES - PISTON RINGS - SEALS AND GASKETS
Major Hydraulic Kits on the
NEXT PAGE

** ONE PART NUMBER
COVERS THE LOT

PART No.**
CONTENTS
APPLICATION
B600

1 - B703 Relief Valve
1 - B705 Control Valve
1 - B1837 Pump Base Gasket
1 - B1842 P.T.O. Gasket

1 - B1840 Ram Cyl. Gasket
1 - B1836 Lift Cover Gasket
2 - B1839 Side Plate Gasket
Overhaul Instructions

Te20
Up to 330043 (late 1953)
Identify by plate & gasket between lower lift arm pin & diff. Housing
Late models (no plate) use different relief valve

B601

Includes All Above Plus
4 - B704 Pump Poppet Valves + B5214 Ram Cyl. Rings

B602

1 - B702 Relief Valve
1 - B706 Control Valve
4 - B2381 Piston Ring
2 - B2374 Valve Chamber Kit

1 - B1802 "O" Ring Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

MF35, MF65

B604

1 - B2389 Relief Valve
1 - B708 Update Cont. Valve
4 - B2382 Piston Ring
2 - B2374 Valve Chamber Kit

1 - B4802 Seal/Gask. Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

MF135, 148, 165, 168
MF175, 178, 185, 188
Very late models with Mk III pump (filter faces down) use B606 kit below

B8604
1 - B2389 Relief Valve
1 - B5209 Update Cont. Valve
4 - B2382 Piston Ring
2 - B2374 Valve Chamber Kit
1 - B4802 Seal/Gask. Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket
MF1080, 1085 (US model 285)
B606

1 - B5208 Control Valve
4 - B2382 Piston Ring
2 - B2374 Valve Chamber Kit

1 - B4802 Seal/Gask. Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

Above models when Mk III pump fitted + MF240, 250, 265 275, 285, 290, 298, 550, 565, 575
590, 595, 675, 690, 698, 699
