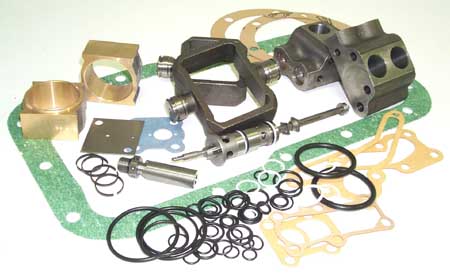

MF Major Hydraulic Rebuild Kits

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

**
ONE PART NUMBER COVERS THE LOT

PART No.
CONTENTS
APPLICATION
B603

2 - B2379 Piston
4 - B2381 Piston Ring
2 - B2375 Valve Chamber
2 - B2374 Chamber Kit
1- B2377 Cam Block
1 - B2378 Cam Block

1 - B702 Relief Valve
1 - B706 Control Valve
1 - B1802 "O" Ring Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

MF35, MF65

B605

2 - B2380 Piston
4 - B2382 Piston Ring
2 - B6629 Valve Chamber
1- B2389 Relief Valve
1 - B2383 Lift Cover Gasket

1 - B2377 Cam Block
1 - B2378 Cam Block
1 - B708 Control Valve
2 - B1839 Side Cover Gasket
1 - B4802 Seal/Gasket Kit

MF135, 148, 165, 168
MF175, 178, 185, 188
[Very late models with Mk III pump (filter faces down) use B607 kit below]

B8605
2 - B2380 Piston
4 - B2382 Piston Ring
2 - B6629 Valve Chamber
1- B2389 Relief Valve
1 - B2383 Lift Cover Gasket
1 - B2377 Cam Block
1 - B2378 Cam Block
1 - B5209 Control Valve
2 - B1839 Side Cover Gasket
1 - B4802 Seal/Gasket Kit
MF1080, 1085 (US model 285)
B607

2 - B2380 Piston
4 - B2382 Piston Ring
2 -B6629 Valve Chamber
1- B5208 Control Valve

1 - B2377 Cam Block
1 - B2378 Cam Block
1 - B2383 Lift Cover Gasket
2 - B1839 Side Plate Gasket
1 - B4802 Seal/Gasket Kit

Above models when Mk III pump fitted + MF240, 250, 265 275, 285, 290, 298, 550, 565, 575
590, 595, 675, 690, 698, 699
