TOP ROLLER CHAINS

Top rollers are monunted above the chain pitch line in the middle of adjacent rollers to support material directly.The goods on the top roller can be loaded,taken off or temporarily stopped while the chain is in running. Available in both of steel top roller and poliacetal resin top roller.

Top Roller at every pitch

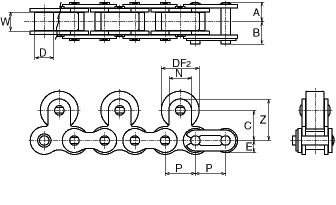

Top Roller at 2 pitches

Dimensions in Inches and Pounds.

Chain Number	Pitch P	Inner Width W	Roller Dia. D	d	Top Roller		C	Z	N	E
					DF1	DF2
40	1/2	5/16	.31	.156	.433	.625	.500	.687	.374	.232
50	5/8	3/8	.400	.200	.591	.750	.626	.876	.500	.287
60	3/4	1/2	.469	.234	.709	.875	.720	1.033	.626	.346
80	1	5/8	.625	.312	.945	1.125	.969	1.344	.752	.453
100	1 1/4	3/4	.750	.375	1.181	1.563	1.252	1.752	1.000	.571

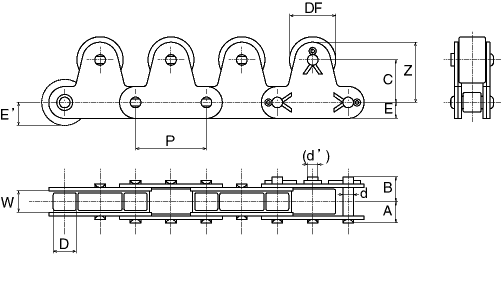

Top Roller at every pitch

Dimensions in Inches and Pounds.

Chain Number	Pitch P	Inner Width W	Roller Dia. D	d	DF1	A	B	C	Z
C-2040	1	5/16	.31	.156	.625	.318	.405	.591	.827
C-2042	1	5/16	.31	.156	.625	.318	.405	.591	.827
C-2050	1 1/4	3/8	.400	.200	.750	.400	.478	.748	1.043
C-2052	1 1/4	3/8	.400	.200	.750	.400	.478	.748	1.043
C-2060H	1 1/2	1/2	.469	.234	.875	.565	.671	.906	1.244
C-2062H	1 1/2	1/2	.469	.234	.875	.565	.671	.906	1.244
C-2080H	2	5/8	.625	.312	1.125	.701	.823	1.142	1.594
C-2082H	2	5/8	.625	.312	1.125	.701	.823	1.142	1.594
C-2100H	2 1/2	3/4	.750	.375	1.563	.855	.972	1.394	1.957
C-2102H	2 1/2	3/4	.750	.375	1.563	.855	.972	1.394	1.957
