Specials
|
|
| |
|
| STAINLESS
ROLLER CHAINS |
-
- These are standard series chains made of "304"
chrome nickel stainless steel for using under corrosive conditions
or in high temperature applications.
|
 |
 |

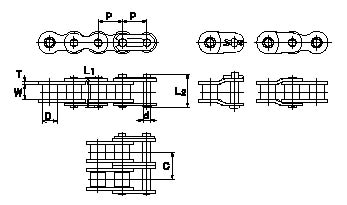

Dimensions in Inches and Pounds.
ANSI
Chain
Number |
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L1 |
L2 |
C |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
| 25SS |
1/4 |
1/8 |
* .130 |
.090 |
.34 |
.37 |
... |
.030 |
.084 |
| 25SS-2 |
1/4 |
1/8 |
*
.130 |
.090 |
.59 |
.63 |
.252 |
.030 |
.163 |
| 35SS |
3/8 |
3/16 |
* .200 |
.141 |
.50 |
.56 |
... |
.050 |
.210 |
| 35SS-2 |
3/8 |
3/16 |
*
.200 |
.141 |
.852 |
.911 |
.398 |
.050 |
.414 |
| 40SS |
1/2 |
5/16 |
.312 |
.156 |
.67 |
.72 |
... |
.060 |
.410 |
| 40SS-2 |
1/2 |
5/16 |
.312 |
.156 |
1.24 |
1.29 |
.566 |
.060 |
.800 |
| 50SS |
5/8 |
3/8 |
.400 |
.200 |
.83 |
.89 |
... |
.080 |
.680 |
| 50SS-2 |
5/8 |
3/8 |
.400 |
.200 |
1.55 |
1.60 |
.713 |
.080 |
1.320 |
| 60SS |
3/4 |
1/2 |
.469 |
.234 |
1.04 |
1.11 |
... |
.094 |
1.000 |
| 60SS-2 |
3/4 |
1/2 |
.469 |
.234 |
1.94 |
2.01 |
.897 |
.094 |
1.950 |
| 80SS |
1 |
5/8 |
.625 |
.312 |
1.32 |
1.44 |
... |
.125 |
1.690 |
| 80SS-2 |
1 |
5/8 |
.625 |
.312 |
2.43 |
2.55 |
1.154 |
.125 |
3.302 |
- *Chains are rollerless - dimension shown is
bushing diameter.
- Offset link of #25 is two pitch type.
|

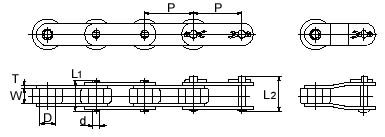

Dimensions in Inches and Pounds.
ANSI
Chain
Number |
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L1 |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
| C2040SS |
1 |
5/16 |
.312 |
.156 |
.68 |
.76 |
.60 |
.34 |
| C2042SS |
1 |
5/16 |
.625 |
.156 |
.68 |
.76 |
.060 |
.50 |
| C2050SS |
1 1/4 |
3/8 |
.400 |
.200 |
.84 |
.92 |
.080 |
.58 |
| C2052SS |
1 1/4
|
3/8 |
.750 |
.200 |
.84 |
.92 |
.080 |
.81 |
| C2060SS |
1 1/2 |
1/2 |
.469 |
.234 |
1.18 |
1.25 |
.125 |
1.05 |
| C2062SS |
1 1/2
|
1/2 |
.875 |
.234 |
1.18 |
1.25 |
.125 |
1.42 |
| C2080SS |
2 |
5/8 |
.625 |
.312 |
1.45 |
1.57 |
.156 |
1.40 |
| C2082SS |
2 |
5/8 |
1.125 |
.312 |
1.45 |
1.57 |
.156 |
2.13 |
|
|
