| SIDE
BOW CHAINS |
-
- The basic dimensions are the same as those
of ANSI standard chain,but the side bow chains are provided
with extra clearances between both the bushings and pins and
in overall chain width for extra lateral radii and flexibility.
|

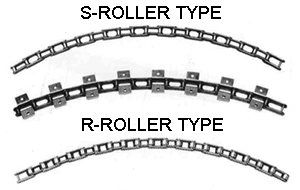

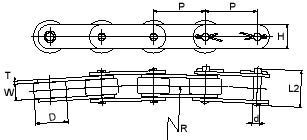

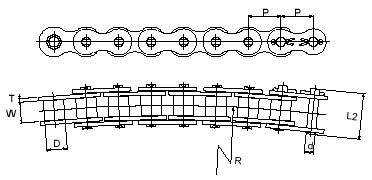

Dimensions in Inches and Pounds.
Chain
Number |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
Pin
Dia.
d |
Link Plate
Thickness
T |
L2 |
Min.
Radius of Side Bow
R |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| 40SB |
1/2 |
5/16 |
.312 |
.141 |
.060 |
.705 |
14 |
.41 |
3,480 |
| 50SB |
5/8 |
3/8 |
.400 |
.178 |
.080 |
.892 |
16 |
.68 |
5,420 |
| 60SB |
3/4 |
1/2 |
.469 |
.200 |
.094 |
1.091 |
20 |
.94 |
7,830 |
| 80SB |
1 |
5/8 |
.625 |
.235 |
.125 |
1.390 |
24 |
1.66 |
13,840 |

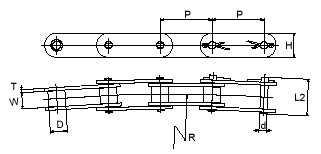

Dimensions in Inches and Pounds.
Chain
Number |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
Pin
Dia.
d |
Link Plate
Thickness
T |
L2 |
Min.
Radius of Side Bow
R |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| C-2040 |
1 |
5/16 |
.312 |
.141 |
.060 |
.705 |
28 |
.34 |
3,480 |
| C-2042 |
1 |
5/16 |
.625 |
.141 |
.060 |
.705 |
28 |
.50 |
3,480 |
| C-2050 |
1 1/4 |
3/8 |
.400 |
.178 |
.080 |
.892 |
32 |
.58 |
5,420 |
| C-2052 |
1 1/4 |
3/8 |
.750 |
.178 |
.080 |
.892 |
32 |
.81 |
5,420 |
| C-2060H |
1 1/2 |
1/2 |
.469 |
.200 |
.125 |
1.209 |
40 |
1.05 |
7,830 |
| C-2062H |
1 1/2 |
1/2 |
.875 |
.200 |
.125 |
1.209 |
40 |
1.42 |
7,830 |
| C-2080H |
2 |
5/8 |
.625 |
.235 |
.156 |
1.516 |
48 |
1.40 |
13,840 |
| C-2082H |
2 |
5/8 |
1.125 |
.235 |
.156 |
1.516 |
48 |
2.13 |
13,840 |
|
|
