Specials
|
|
| |
|
| NICKEL
PLATED CHAINS |
-
- Nickel plated chain may be desirablein mildly
corrosive areas.The appearance is nickel gloss resembling the
finish of stainless steel,and the tensile strength meets ANSI
specifications.
The chains are available as single or multiple strand.
|
 |
Dimensions in Inches and Pounds.

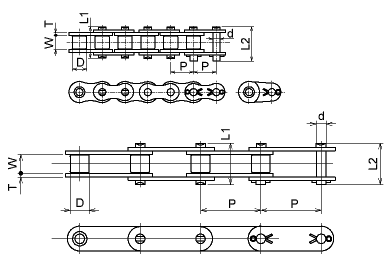

ANSI
Chain
Number |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L1 |
L2 |
Link Plate
Thickness
T |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| 25NP |
1/4 |
1/8 |
* .130 |
.090 |
.34 |
.37 |
.030 |
.085 |
875 |
| 35NP |
3/8 |
3/16 |
* .200 |
.141 |
.50 |
.56 |
.050 |
.220 |
2100 |
| 40NP |
1/2 |
5/16 |
.312 |
.156 |
.67 |
.72 |
.060 |
.420 |
4000 |
| 50NP |
5/8 |
3/8 |
.400 |
.200 |
.83 |
.89 |
.080 |
.680 |
6600 |
| 60NP |
3/4 |
1/2 |
.469 |
.234 |
1.04 |
1.11 |
.094 |
.970 |
8500 |
| 80NP |
1 |
5/8 |
.625 |
.312 |
1.32 |
1.44 |
.125 |
1.700 |
14500 |
| 100NP |
1 1/4 |
3/4 |
.750 |
.375 |
1.61 |
1.73 |
.156 |
2.500 |
24000 |
| 120NP |
1 1/2 |
1 |
.875 |
.437 |
2.00 |
2.14 |
.187 |
3.700 |
34000 |
| C2040NP |
1 |
5/16 |
.312 |
.156 |
.68 |
.76 |
.060 |
.320 |
3700 |
| C2050NP |
1 1/4 |
3/8 |
.400 |
.200 |
.84 |
.92 |
.080 |
.550 |
6100 |
| C2060HNP |
1 1/2 |
1/2 |
.469 |
.234 |
1.18 |
1.25 |
.125 |
.970 |
8500 |
- *Chains are rollerless - dimension shown is
bushing diameter.
|
|
|
