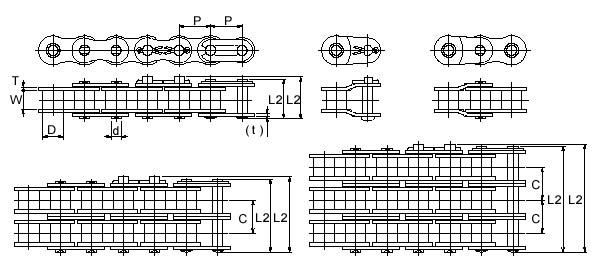

- These chains are standardized in accordance
with ISO and are fully interchangeable with chains built according
to DIN 8187 and BS 228:1970.
*All riveted pin-type.
|
 |
 |
Dimensions in Inches and Pounds.
ISO
BS / DIN
Chain No. |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L2 |
Link
Plate
Thickness |
C |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| T |
t |
| 06B |
.375 |
.225 |
.250 |
.129 |
.550 |
.050 |
.040 |
- |
.26 |
2,310 |
| 06B-2 |
.375 |
.225 |
.250 |
.129 |
.960 |
.050 |
.040 |
.403 |
.50 |
4,080 |
| 08B |
.500 |
.305 |
.335 |
.175 |
.725 |
.060 |
.060 |
- |
.47 |
4,410 |
| 08B-2 |
.500 |
.305 |
.335 |
.175 |
1.272 |
.060 |
.060 |
.548 |
.90 |
7,600 |
| 08B-3 |
.500 |
.305 |
.335 |
.175 |
1.820 |
.060 |
.060 |
.548 |
1.34 |
10,900 |
| 10B |
.625 |
.380 |
.400 |
.200 |
.820 |
.060 |
.060 |
- |
.64 |
5,840 |
| 10B-2 |
.625 |
.380 |
.400 |
.200 |
1.470 |
.060 |
.060 |
.653 |
1.24 |
11,700 |
| 10B-3 |
.625 |
.380 |
.400 |
.200 |
2.130 |
.060 |
.060 |
.653 |
1.88 |
17,500 |
| 12B |
.750 |
.460 |
.475 |
.225 |
.955 |
.070 |
.070 |
- |
.84 |
7,500 |
| 12B-2 |
.750 |
.460 |
.475 |
.225 |
1.720 |
.070 |
.070 |
.766 |
1.68 |
15,000 |
| 12B-3 |
.750 |
.460 |
.475 |
.225 |
2.490 |
.070 |
.070 |
.766 |
2.55 |
22,500 |
| 16B |
1.000 |
.670 |
.625 |
.326 |
1.490 |
.156 |
.125 |
- |
1.82 |
16,500 |
| 16B-2 |
1.000 |
.670 |
.625 |
.326 |
2.750 |
.156 |
.125 |
1.255 |
3.62 |
31,500 |
| 16B-3 |
1.000 |
.670 |
.625 |
.326 |
4.000 |
.156 |
.125 |
1.255 |
5.36 |
47,000 |
| 20B |
1.250 |
.770 |
.750 |
.401 |
1.700 |
.177 |
.138 |
- |
2.59 |
24,300 |
| 20B-2 |
1.250 |
.770 |
.750 |
.401 |
3.140 |
.177 |
.138 |
1.435 |
5.14 |
46,100 |
| 20B-3 |
1.250 |
.770 |
.750 |
.401 |
4.575 |
.177 |
.138 |
1.435 |
7.70 |
69,200 |
| 24B |
1.500 |
1.000 |
1.000 |
.576 |
2.290 |
.236 |
.204 |
- |
5.01 |
41,900 |
| 24B-2 |
1.500 |
1.000 |
1.000 |
.576 |
4.200 |
.236 |
.204 |
1.904 |
9.84 |
79,800 |
| 24B-3 |
1.500 |
1.000 |
1.000 |
.576 |
6.100 |
.236 |
.204 |
1.904 |
14.62 |
119,500 |
| 28B |
1.750 |
1.220 |
1.100 |
.626 |
2.755 |
.295 |
.248 |
- |
6.35 |
48,500 |
| 28B-2 |
1.750 |
1.220 |
1.100 |
.626 |
5.100 |
.295 |
.248 |
2.345 |
12.63 |
92,400 |
| 28B-3 |
1.750 |
1.220 |
1.100 |
.626 |
7.443 |
.295 |
.248 |
2.345 |
18.95 |
138,500 |
| 32B |
2.000 |
1.500 |
1.150 |
.701 |
2.750 |
.276 |
.248 |
- |
6.89 |
63,100 |
| 32B-2 |
2.000 |
1.500 |
1.150 |
.701 |
5.060 |
.276 |
.248 |
2.305 |
13.51 |
119,900 |
| 32B-3 |
2.000 |
1.500 |
1.150 |
.701 |
7.360 |
.276 |
.248 |
2.305 |
20.10 |
180,100 |
| 40B |
2.500 |
1.550 |
1.550 |
.901 |
3.320 |
.335 |
.315 |
- |
10.99 |
88,200 |
| 40B-2 |
2.500 |
1.550 |
1.550 |
.901 |
6.170 |
.335 |
.315 |
2.846 |
21.50 |
169,300 |
| 40B-3 |
2.500 |
1.550 |
1.550 |
.901 |
9.015 |
.335 |
.315 |
2.846 |
32.09 |
255,300 |
- 06B - Straight Shape Link Plate.
|
|
|
