Specials
|
|
| |
|
| HEAVY
SERIES ROLLER CHAINS |
-

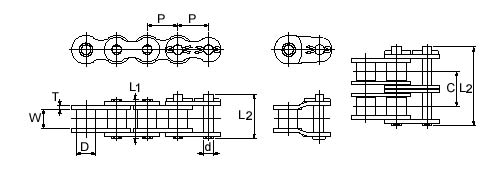

- Made to ANSI B29.1 specifications. These chains
are similar to standard roller chain, but having plate thickness
of the next large pitch.
The thicker link plates provide additional capacity for absorbing
shock load.
|
 |
 |
Dimensions in Inches and Pounds.
ANSI
Chain
Number |
Chain
Pitch
P |
Inner
Width
W |
Roller
Dia.
D |
d |
L1 |
L2 |
Link Plate
Thickness
T |
C |
Approx.
Weight
(lbs./ft) |
Tensile
Strength
Ave.(lbs.) |
| 40H |
1/2 |
5/16 |
.312 |
.156 |
.713 |
.772 |
.080 |
... |
.50 |
4000 |
| 40H-2 |
1/2 |
5/16 |
.312 |
.156 |
.358 |
1.417 |
.080 |
.646 |
.99 |
8000 |
| 50H |
5/8 |
3/8 |
.400 |
.200 |
.864 |
.921 |
.094 |
... |
.98 |
6200 |
| 50H-2 |
5/8 |
3/8 |
.400 |
.200 |
1.636 |
1.693 |
.094 |
.780 |
1.94 |
12400 |
| 60H |
3/4 |
1/2 |
.469 |
.234 |
1.17 |
1.24 |
.125 |
... |
1.18 |
8500 |
| 60H-2 |
3/4 |
1/2 |
.469 |
.234 |
2.20 |
2.27 |
.125 |
1.028 |
2.33 |
17000 |
| 80H |
1 |
5/8 |
.625 |
.312 |
1.45 |
1.57 |
.156 |
... |
2.02 |
14500 |
| 80H-2 |
1 |
5/8 |
.625 |
.312 |
2.72 |
2.84 |
.156 |
1.283 |
3.93 |
29000 |
| 100H |
1 1/4 |
3/4 |
.750 |
.375 |
1.74 |
1.86 |
.187 |
... |
2.82 |
24000 |
| 100H-2 |
1 1/4 |
3/4 |
.750 |
.375 |
3.28 |
3.41 |
.187 |
1.539 |
5.58 |
48000 |
| 120H |
1
1/2 |
1 |
.875 |
.437 |
2.13 |
2.27 |
.219 |
... |
4.08 |
34000 |
| 120H-2 |
1
1/2 |
1 |
.875 |
.437 |
4.06 |
4.20 |
.219 |
1.924 |
8.04 |
68000 |
| 140H |
1 3/4 |
1 |
1.000 |
.500 |
2.28 |
2.44 |
.250 |
... |
5.40 |
46000 |
| 140H-2 |
1 3/4 |
1 |
1.000 |
.500 |
4.34 |
4.50 |
.250 |
2.055 |
10.65 |
92000 |
| 160H |
2 |
1
1/4 |
1.125 |
.562 |
2.68 |
2.86 |
.281 |
... |
7.03 |
58000 |
| 160H-2 |
2 |
1
1/4 |
1.125 |
.562 |
5.12 |
5.30 |
.281 |
2.436 |
13.88 |
116000 |
| 180H |
2 1/4 |
1 13/32 |
1.406 |
.687 |
3.01 |
3.28 |
.312 |
... |
9.59 |
76000 |
| 180H-2 |
2 1/4 |
1 13/32 |
1.406 |
.687 |
5.73 |
6.00 |
.312 |
2.723 |
18.86 |
152000 |
| 200H |
2
1/2 |
1
1/2 |
1.562 |
.781 |
3.39 |
3.71 |
.375 |
... |
13.38 |
110000 |
| 200H-2 |
2
1/2 |
1
1/2 |
1.562 |
.781 |
6.48 |
6.79 |
.375 |
3.083 |
26.38 |
220000 |
|
|
