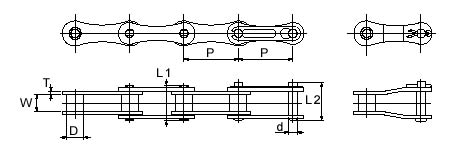

DOUBLE PITCH ROLLER CHAINS
Made to ANSI B 29.3 specifications. These are characterized by the figure 8 contour link plates and are similar to the basic series roller chains dimensionally except that the pitch is double.
Dimensions in Inches and Pounds.
ANSI
Chain
Number		 Chain
Pitch
P		 Inner
Width
W		 Roller
Dia.
D		 d L1 L2 Link Plate
Thickness
T		 Approx.
Weight
(lbs./ft)		 Tensile
Strength
Ave.(lbs.)
A2040 1 5/16 .312 .156 .68 .76 .060 .28 3700
A2050 1-1/4 3/8 .400 .200 .84 .92 .080 .52 6100
A2060 1-1/2 1/2 .469 .234 1.05 1.11 .094 .72 8500
A2080 2 5/8 .625 .312 1.32 1.44 .125 1.13 14500


DOUBLE PITCH CONVEYOR CHAINS
Made to ANSI B 29.4 specifications. These are extended pitch with oval contour link plates. They are designed for conveyor service and made in 1" to 4" pitch in both standard roller(S-roller type) and large rollers(R-roller type).

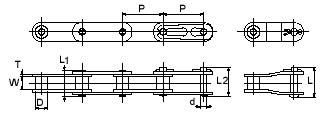

Standard Roller Type(S-Roller)

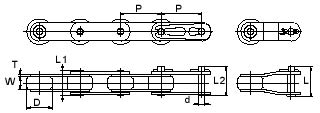

Large Roller Type(R-Roller)

Standard Roller Type(S-Roller)
Dimensions in Inches and Pounds.
ANSI
Chain
Number		 Chain
Pitch
P		 Inner
Width
W		 Roller
Dia.
D		 d L1 L2 Link Plate
Thickness
T		 Approx.
Weight
(lbs./ft)		 Tensile
Strength
Ave.(lbs.)
C-2040 1 5/16 .312 .156 .68 .76 .060 .34 3700
C-2050 1 1/4 3/8 .400 .200 .84 .92 .080 .58 6100
C-2060H 1 1/2 1/2 .469 .234 1.18 1.25 .125 1.05 8500
C-2080H 2 5/8 .625 .312 1.45 1.57 .156 1.40 14500
C-2100H 2 1/2 3/4 .750 .375 1.74 1.86 .187 2.48 24000
C-2120H 3 1 .875 .437 2.13 2.27 .219 3.60 34000
C-2160H 4 1 1/4 1.125 .562 2.68 2.86 .281 6.18 58000

Large Roller Type(R-Roller)
Dimensions in Inches and Pounds.
ANSI
Chain
Number		 Chain
Pitch
P		 Inner
Width
W		 Roller
Dia.
D		 d L1 L2 Link Plate
Thickness
T		 Approx.
Weight
(lbs./ft)		 Tensile
Strength
Ave.(lbs.)
C-2042 1 5/16 .625 .156 .68 .76 .060 .50 3700
C-2052 1 1/4 3/8 .750 .200 .84 .92 .080 .81 6100
C-2062H 1 1/2 1/2 .875 .234 1.18 1.25 .125 1.42 8500
C-2082H 2 5/8 1.125 .312 145 1.57 .156 2.13 14500
C-2102H 2 1/2 3/4 1.562 .375 1.74 1.86 .187 3.51 24000
C-2122H 3 1 1.750 .437 2.13 2.27 .219 5.48 34000
C-2162H 4 1 1/4 2.250 .562 2.68 2.86 .281 9.34 58000
