ROLLER CHAINS WITH ATTACHMENTS

The standard types of attachments provided on the chains are Bent attachments on one side or both sides - A1,K1,A2,K2 etc. Straight attachments on one side or both sides - SA1,SK1,SA2,SK2 etc. Wide contour attachments -WA1,WA2,WK1,WK2 etc. Extended pin attachments - D1,D3 etc.

Standard Straight and Bent Attachments.

A-1 attachment

K-1 attachment

SA-1 attachment

SK-1 attachment

Dimensions in Inches.

Chain Number.	Attachment
	N	O	E	C	X	Y	S	Z
25	.220	.134	.114	.187	.281	.421	.313	.459
35	.311	.134	.173	.250	.374	.543	.374	.543
40	.378	.142	.228	.311	.500	.685	.500	.681
50	.500	.205	.287	.406	.625	.878	.626	.878
60	.625	.205	.346	.469	.750	1.071	.719	1.035
80	.752	.268	.453	.626	1.000	1.709	.969	1.346
100	1.000	.343	.567	.781	1.250	1.760	1.250	1.756
120	1.126	.406	.689	.906	1.500	2.067	1.439	2.004
140	1.374	.469	.803	1.126	1.750	2.446	1.750	2.441
160	1.500	.563	.921	1.250	2.000	2.795	2.000	2.752

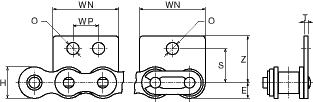

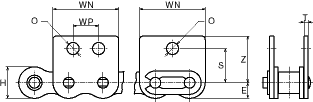

Wide Contour Straight and Bend Attachments.

WA-1 WA-2 attachment

WK-1 WK-2 attachment

WSA-1 WSA-2 attachment

WSK-1 WSK-2 attachment

Dimensions in Inches.

Chain Number.	Attachment
	WN	WP	O	E	C	X	Y	S	Z
35	0.611	.374	.134	.173	.250	.374	.543	.374	0.543
40	.906	.374	.177	.228	.311	.500	.685	.500	0.681
50	1.122	.469	.217	.287	.406	.626	.880	.626	0.878
60	1.362	.563	.260	.346	.469	.750	1.071	.719	1.035
80	1.815	.752	.354	.453	.626	1.000	1.386	.969	1.346
100	2.228	.937	.433	.567	.781	1.250	1.760	1.250	1.756

Double - Pitch Bend Attachments.

A-1 attachment

K-1 attachment

A-2 attachment

K-2 attachment

Dimensions in Inches.

Chain Number.	Attachment
	N	O	C	X	Y	F
C-2040	0.752	.142	.358	.500	.752	.374
C-2042	0.752	.142	.358	.500	.752	.374
C-2050	.937	.205	.437	.626	.941	.469
C-2052	.937	.205	.437	.626	.941	.469
C-2060H	1.126	.205	.579	.844	1.256	.561
C-2062H	1.126	.205	.579	.844	1.256	.561
C-2080H	1.500	.268	.752	1.094	1.594	.750
C-2082H	1.500	.268	.752	1.094	1.594	.750
C-2100H	1.875	.343	.921	1.311	1.969	.937
C-2102H	1.875	.343	.921	1.311	1.969	.937
C-2120H	2.252	.406	1.094	1.561	2.390	1.126
C-2122H	2.252	.406	1.094	1.561	2.390	1.126

Double - Pitch Straight Attachments.

SA-1 attachment

SK-1 attachment

SA-2 attachment

SK-2 attachment

Dimensions in Inches.

Chain Number.	Attachment
	N	O	O'	C	S	Z	F
C-2040	0.752	.142	.205	.531	.437	.780	.374
C-2042	0.752	.142	.205	.531	.437	.780	.374
C-2050	.937	.205	.268	.626	.561	.949	.469
C-2052	.937	.205	.268	.626	.561	.949	.469
C-2060H	1.126	.205	.343	.768	.689	1.222	.561
C-2062H	1.126	.205	.343	.768	.689	1.222	.561
C-2080H	1.500	0.268	0.406	1.000	0.874	1.587	0.75
C-2082H	1.500	0.268	0.406	1.000	0.874	1.587	0.75
C-2100H	1.874	0.343	0.531	1.25	1.126	1.884	0.937
C-2102H	1.874	0.343	0.531	1.25	1.126	1.884	0.937
C-2120H	2.252	0.406	0.63	1.469	1.311	2.362	1.126
C-2122H	2.252	0.406	0.63	1.469	1.311	2.362	1.126

Standard Extended Pins.
For Standard Series Chains, Double - Pitch Chains.

D-1 attachment (one extended pin)

D-3 attachment (two extended pins)

Dimensions in Inches.

Chain Number.	Pin Dia. d	Pin Proj. DH	L
35	0.141	.375	.571
40	.156	.375	.654
50	.200	.469	.823
60	.234	.563	1.008
80	.312	.748	1.323
100	.375	.937	1.638
120	.437	1.126	2.016
140	.500	1.311	2.264
160	.562	1.500	2.650

D-1 attachment

D-3 attachment

Dimensions in Inches.

Chain Number.	Pin Dia. d	Pin Proj. DH	L
C-2040 C-2042	0.156	.375	.654
C-2050 C-2052	.200	.469	.823
C-2060H C-2062H	.234	.563	1.008
C-2080H C-2082H	.312	.748	1.323
C-2100H C-2102H	.375	.937	1.638
