ANSI STANDARD ROLLER CHAINS

Made to ANSI B29.1 specifications(American National Standard Institute). The chains are available as single or multiple strand and may be supplied with either riveted or cottered pins.

Dimensions in Inches and Pounds.

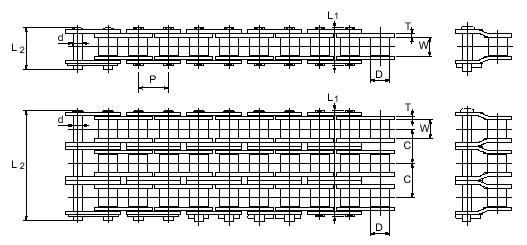

ANSI Chain Number	Chain Pitch P	Inner Width W	Roller Dia. D	d	L1	L2	Link Plate Thickness T	C	Approx. Weight (lbs./ft)	Tensile Strength Ave.(lbs.)
25	1/4	1/8	* .130	.090	.34	.37	.030	...	.084	875
25-2	1/4	1/8	* .130	.090	.59	.63	.030	.252	.163	1750
25-3	1/4	1/8	* .130	.090	.84	.88	.030	.252	.246	2625
35	3/8	3/18	* .200	.141	.50	.56	.050	...	.210	2100
35-2	3/8	3/18	* .200	.141	.90	.96	.050	.399	.450	4200
35-3	3/8	3/18	* .200	.141	1.31	1.36	.050	.399	.680	6300
40	1/2	5/16	.312	.156	.67	.72	.060	...	.410	4000
40-2	1/2	5/16	.312	.156	1.24	1.29	.060	.566	.800	8000
40-3	1/2	5/16	.312	.156	1.80	1.85	.060	.566	1.200	12000
40-4	1/2	5/16	.312	.156	2.37	2.42	.060	.566	1.600	16000
41	1/2	1/4	.306	.141	.57	.65	.050	...	.260	2400
50	5/8	3/8	.400	.200	.83	.89	.080	...	.680	6600
50-2	5/8	3/8	.400	.200	1.55	1.60	.080	.713	1.320	13200
50-3	5/8	3/8	.400	.200	2.26	2.31	.080	.713	1.980	19800
50-4	5/8	3/8	.400	.200	2.97	3.03	.080	.713	2.640	26400
50-5	5/8	3/8	.400	.200	3.69	3.75	.080	.713	3.300	33000
60	3/4	1/2	.469	.234	1.04	1.11	.094	...	.990	8500
60-2	3/4	1/2	.469	.234	1.94	2.01	.094	.897	1.950	17000
60-3	3/4	1/2	.469	.234	2.84	2.91	.094	.897	2.880	25500
60-4	3/4	1/2	.469	.234	3.74	3.81	.094	.897	3.900	34000
60-5	3/4	1/2	.469	.234	4.64	4.71	.094	.897	4.970	42500
60-6	3/4	1/2	.469	.234	5.53	5.50	.094	.897	5.960	51000
80	1	5/8	.625	.312	1.32	1.44	.125	...	1.73	14500
80-2	1	5/8	.625	.312	2.47	2.59	.125	1.153	3.37	29000
80-3	1	5/8	.625	.312	3.62	3.74	.125	1.153	5.02	43500
80-4	1	5/8	.625	.312	4.79	4.90	.125	1.153	6.73	58000
80-5	1	5/8	.625	.312	5.94	6.06	.125	1.153	8.40	72500
80-6	1	5/8	.625	.312	7.10	7.22	.125	1.153	10.07	87000
100	1 1/4	3/4	.750	.375	1.61	1.73	.156	...	2.51	24000
100-2	1 1/4	3/4	.750	.375	3.02	3.14	.156	1.408	4.91	48000
100-3	1 1/4	3/4	.750	.375	4.43	4.56	.156	1.408	7.40	72000
100-4	1 1/4	3/4	.750	.375	5.84	5.97	.156	1.408	9.80	96000
100-5	1 1/4	3/4	.750	.375	7.25	7.38	.156	1.408	12.20	120000
100-6	1 1/4	3/4	.750	.375	8.66	8.78	.156	1.408	14.60	144000
120	1 1/2	1	.875	.437	2.00	2.14	.187	...	3.69	34000
120-2	1 1/2	1	.875	.437	3.79	3.93	.187	1.789	7.35	68000
120-3	1 1/2	1	.875	.437	5.58	5.72	.187	1.789	11.10	102000
120-4	1 1/2	1	.875	.437	7.38	7.52	.187	1.789	14.70	136000
120-5	1 1/2	1	.875	.437	9.17	9.31	.187	1.789	18.43	170000
120-6	1 1/2	1	.875	.437	10.96	11.10	.187	1.789	22.11	204000
140	1 3/4	1	1.000	.500	2.14	2.31	.219	...	5.00	46000
140-2	1-3/4	1	1.000	.500	4.07	4.24	.219	1.924	9.65	92000
140-3	1-3/4	1	1.000	.500	6.00	6.16	.219	1.924	14.30	138000
140-4	1-3/4	1	1.000	.500	7.93	8.09	.219	1.924	18.95	184000
160	2	1 1/4	1.125	.562	2.54	2.73	.250	...	6.53	58000
160-2	2	1 1/4	1.125	.562	4.85	5.04	.250	2.305	12.83	116000
160-3	2	1 1/4	1.125	.562	7.16	7.35	.250	2.305	19.03	174000
160-4	2	1 1/4	1.125	.562	9.47	9.66	.250	2.305	25.60	232000
180	2 1/4	1 13/32	1.406	.687	2.88	3.15	.281	...	9.06	76000
180-2	2 1/4	1 13/32	1.406	.687	5.48	5.75	.281	2.592	17.67	152000
180-3	2 1/4	1 13/32	1.406	.687	8.07	8.34	.281	2.592	26.20	228000
200	2 1/2	1 1/2	1.562	.781	3.12	3.44	.312	...	10.65	95000
200-2	2 1/2	1 1/2	1.562	.781	5.94	6.26	.312	2.817	21.50	190000
200-3	2 1/2	1 1/2	1.562	.781	8.76	9.08	.312	2.817	32.30	285000
200-4	2 1/2	1 1/2	1.562	.781	11.58	11.90	.312	2.817	42.90	380000
240	3	1 7/8	1.875	.937	3.76	4.15	.375	...	16.46	130000
240-2	3	1 7/8	1.875	.937	7.22	7.61	.375	3.458	32.40	260000
240-3	3	1 7/8	1.875	.937	10.70	11.09	.375	3.458	49.00	390000
240-4	3	1 7/8	1.875	.937	14.14	14.54	.375	3.458	64.00	520000
