Part No. B4667
- 1:1.93 ratio
|
|
APPLICATIONS
|
SPECIFICATIONS
|
IDENTIFICATION
|
|
Cotton Choppers
Rotary Cutters
|
HOUSING:
SHAFTS:
GEARS:
SEALS:
BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT: |
60-45-10
Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-90, 47oz, 1.39L
117 lbs, 53.1kg
1 3/4" x 20 spline |
|
Square Housing
1 3/4" x 20 spline input shaft
1.93 ratio = assy no. 250441
(ON PLATE) |
|

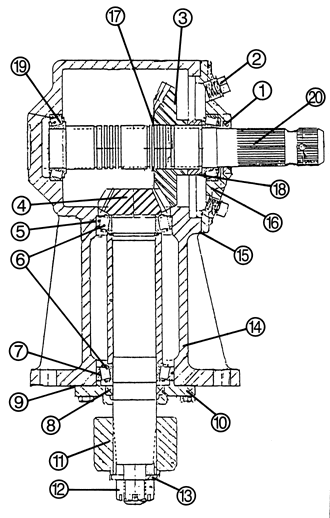

SPARE
PARTS
|
|
REF
|
PART
No.
|
DESCRIPTION
|
|
1
|
B6673
|
Input Seal
|
|
2
|
B7687
|
Breather
Plug
|
|
3
|
B6913
|
Input Gear
29 tooth
|
|
4
|
B6920
|
Output Pinion
Shaft 15 tooth
|
|
5
|
B90
|
Top Bearing
Cup
|
|
6
|
B91
|
Bearing Cone
- Top & Bottom
|
|
7
|
B93
|
Lower Bearing
Cup
|
|
8
|
B2956
|
Lower Oil
Seal
|
|
9
|
B6837
|
Shim gasket
(use qty as req.)
|
|
10
|
B79
|
Lower Cap
|
|
11
|
B4158
|
Hub
|
|
12
|
B7388
|
1" x
14 TPI Castellated Nut
|
|
13
|
B7387
|
Flat Washer
(1" ID)
|
|
14
|
B92
|
Main Housing
|
|
15
|
B6675
|
Shim gasket
(use qty as req.)
|
|
16
|
B6918
|
Input Cap
|
|
17
|
B7389
|
Circlip
(circlip)
|
|
18
|
B7390
|
Spacer
|
|
19
|
B65
|
Cup &
Cone assembly (2 req)
|
|
20
|
B6672
|
Input Shaft
1 3/4" x 20 spline
|
|
|
|
|
