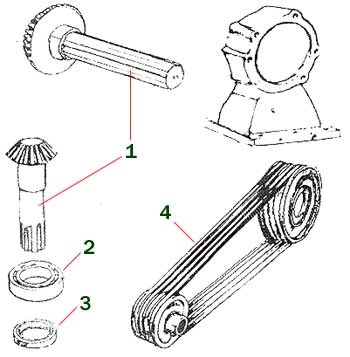

REPLACEMENT PARTS
TO SUIT VICON DISC MOWERS & CONDITIONERS
|
Gear Set, Gearbox Bearing &
Seal, Drive Belt
|
REF
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7760
|
900.96047
|
Gear Set
|
CM216-CM240 Only
|
|
2
|
B7761
|
401.06.307
|
Lower Gearbox Bearing
|
CM144-CM165
CM216-CM240
|
|
3
|
B7762
|
361.15.353
|
Lower Gearbox Seal
|
|
4
|
B5426
|
433.01.603
|
Drive Belt
|
|

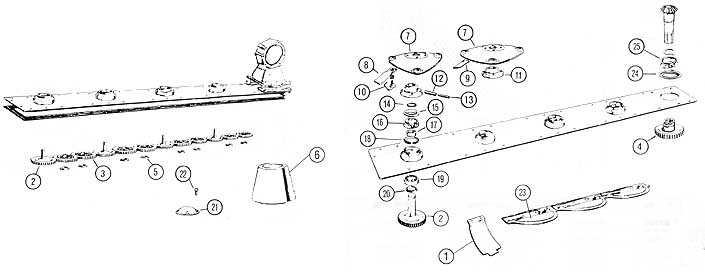

CUTTER HEAD PARTS TO SUIT VICON
DISC MOWERS & CONDITIONERS
|
|
REF
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7759
|
900.66591
|
Skid
|
CM165-CM240
|
|
2
|
B6745
|
900.81687
|
Output Gear
|
|
3
|
B6746
|
900.95860
|
Intermediate Gear
|
|
4
|
B6760
|
900.14484
|
Input Gear
|
|
5
|
B6747
|
70346/70533
|
Nylon Ring
|
|
6
|
B7763
|
900.16600
|
Hat
|
CM165-CM240
(3 Blade Cutter Head)
|
|
7
|
B6749
|
900.16529
|
Cutter Plate
|
|
8
|
B4137
|
902.58699
|
L.H. Blade
|
CM165-CM240
|
|
9
|
B4138
|
902.58700
|
R.H. Blade
|
|
10
|
B5411
|
900.81160 + Nut
|
Blade Bolt & Nut
|
|
11
|
B6750
|
900.21333
|
Cutter Hub
|
|
12
|
B6751
|
308.03.719
|
Outer Roll Pin
|
|
13
|
B6752
|
308.03.855
|
Inner Roll Pin
|
|
14
|
B6783
|
361.07.016
|
"O" Ring
|
|
15
|
B6753
|
314.25.007
|
Shield
|
|
16
|
B6754
|
401.01.527
|
Top Cutter Bearing
|
|
17
|
B6755
|
900.70359
|
Sleeve-Top Cutter
|
|
18
|
B6756
|
900.70490
|
Circlip
|
|
19
|
B6757
|
401.30.207
|
Lower Bearing
|
|
20
|
B6758
|
900.70360
|
Lower Ring
|
|
21
|
B6761
|
994.61192
|
Cutter Cap
|
|
22
|
B6770
|
302.68.120
|
Screw-Cutter Cap
|
|
23
|
B6759
|
900.15923
|
Stone Guard
|
|
24
|
B6785
|
900.41049
|
Shield-Input Gear
|
|
25
|
B6784
|
401.01.110
|
Bearing-Input Gear
|
NOTE: Original part numbers are shown for reference
only.
|
|
