TRACTOR MODEL
|
MUFFLER PIPE SIZE
|
PART No.
|
DESCRIPTION
|
|
CASE-DAVID BROWN 770-780-880-885
990-995-1200-1210-1212-1190-1290
|
2" outside
with Shroud
|
B1504
|
BAKED ENAMEL ROUND BODY
|
|
FIAT 450-480-500-540-550-600-640-650
WITH AUSTRALIAN (FABRICATED) ELBOW (interchangeable with below)
|
2" / 2 1/8" I.D.
(interchangeable with below)
|
B6107
|
BAKED ENAMEL - 110mm DIA BODY
|
|
WITH EUROPEAN (CAST) ELBOW 450/480
500/540/550/600/640/650/466/566/666/766
45-66/55-66/60-66/65-66/70-66/80-66/80-90
|
(46mm I.D.)
|

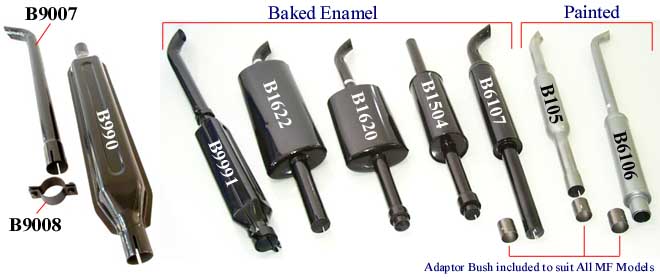

B990
|
SILENCER ONLY - BAKED ENAMEL COMPLETE
WITH EXTENSION PIPE (ABOVE ARE ORIG. TYPE - BAKED ENAMEL)
|
|
B9991
|
|
880/980/90-90/100-90/110-90/1300
|
60mm I.D.
|
B9990
|
COMPLETE WITH EXTENSION PIPE ORIGINAL
TYPE - BAKED ENAMEL
|
|
FORD. DEXTA - SUPER DEXTA
|
2" INSIDE
|
B105
|
90mm (3 1/2") DIA BODY PAINTED
|
|
B6107
|
110mm (4 3/8") DIA BODY BAKED
ENAMEL
|
|
FORDSON MAJOR
|
2" OUTSIDE Suplied with shroud
(Cut if shroud not req.)
|
B1504
|
BAKED ENAMEL
140mm (5 1/2") ROUND BODY
|
|
FORD 2000-3000-4000-2600-3600-4100
4600-2310-2610-2810-2910-3610-3910
4110-4610
|
B1620
|
BAKED ENAMEL
400mm (15 3/4") LONG OVAL BODY
|
|
FORD 5000-5600-5700-6600
|
B1621
|
BAKED ENAMEL 670mm (26")
LONG OVAL BODY
|
|
FORD 7000-7600-7700-7710
|
60mm (2 3/8")
INSIDE
|
B1622
|
|
IHC B250-B275-414-374-384-444
|
UNIVER. INLET 17/8" - 2" - 21/8"
|
B105
|
90mm (3 1/2") DIA BODY (PAINTED)
|
|
454-484-485-474-574-674-584-684-585
685-785-885-495-595-695-795-895
|
60mm (2 3/8")
INSIDE
|
B1622
|
LARGE CAPACITY BAKED ENAMEL
670mm (26") LONG OVAL BODY
|
|
866-886-666-686-696-756-766-786-976-986
|
2 7/8" I.D.
|
B2529
|
ONLY AVAIL AS SPARK ARRESTOR/
MUFFLER
|
|
JOHN DEERE 840-940-1040-1140
(EARLY 1350-1550-1750-1850 WITH 2 BOLT FLANGE)
|
REPLACES AL31552
|
B106
|
UNDER HOOD MUFFLER
|
|
1640-1840-2040-2040S-2450
|
REPLACES AL35753
|

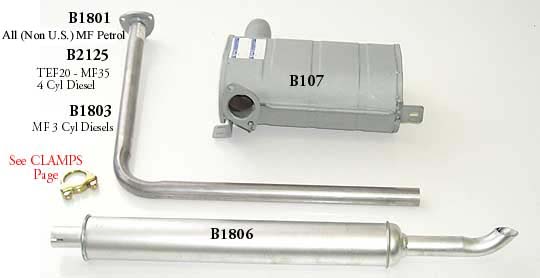

B107
|
|
2140-2650-2850
|
REPLACES AL35753
|
B108
|
|
1020-1120-830-930-1030-1130-1630
840-940-1040-1140-1350-1550-1750-1850
|
2 1/2" I.D.
|
B1097
|
VERTICAL OVAL MUFFLER BAKED ENAMEL
INLET LENGTH = 80mm (3")
|
|
2020-2120-1830-2030-2130
|
B1098
|
VERTICAL OVAL MUFFLER BAKED ENAMEL
INLET LENGTH = 165mm (6 1/2")
|
|
KUBOTA M7500DT
|
2" I.D. or 2 1/8" I.D. (adaptor
bush supplied)
|
B105
|
HEAVY
DUTY BODY 90mm (3 1/2") - PAINTED
OR use B6107 below * |
|
MASSEY FERGUSON TE20-MF35-135-148
|
B6106
|
EUROPEAN TYPE SMALL 80 mm (3 1/8")BODY
OR use B6107 below *
|
|
B105
|
HEAVY DUTY BODY 90mm (3 1/2")
- PAINTED
OR use B6107 below *
|
|
B6107
|
BAKED
ENAMEL BODY 110mm (4 3/8")
* Can
Replace B105 and B6106 above |
|
MF240-250-550-154-254
MF65-165-168-175-178-185-188
MF290-590-690-184-194-284-294
|
B6107
|
|
SAME - ALL MODELS
|
|
UNIVERSAL FARMLINER ALL
MODELS
|
SEE FIAT
(above)
|
