PART No

DESCRIPTION

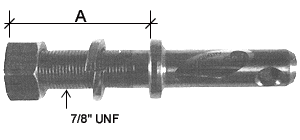

Extra Long Thread Shank: "A" = 75mm

B2406

CAT 1 Replaces
I.H.C. 802585R2

B2407

CAT 2 Replaces
I.H.C. 802586R2

B199

Suits old FERGUSON
TILLER "A" = 16mm
Replaces 646038MI

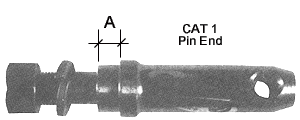

CAT 1 Pin
22mm dia. shoulder

B2475

Suits MASSEY FERGUSON TILLER "A" =19mm
Replaces 889440MI
CAT 1 Pin
22mm dia. shoulder

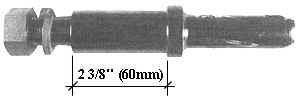

B2951

Suits M.F. 532 MOWER
CAT 1 Pin
shoulder 28.6mm dia x 60mm long
Replaces
195531MI - 195532M1

B205

DUAL CAT 1-2 Suits
Frame Thickness
10 TO 25mm
Suits 1" (25.4mm)
HOLE drilling

B206

Suits 1 1/8"
(28.6mm) HOLE drilling

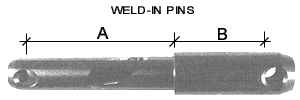

B210

Suits (22mm) drilling
A = 90mm B = 55mm

B214

Suits (28.6mm) drilling
A = 50mm B = 80mm

B7214

Suits (50mm) RHS
(28.6mm) drilling
A = 55mm B = 110mm

B2489

Cross Shaft Suits
JARRETT IMPLEMENTS
CAT 1 (22mm) Pin dia.

B2490

CAT 2 (28.6mm) Pin dia.
