Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|

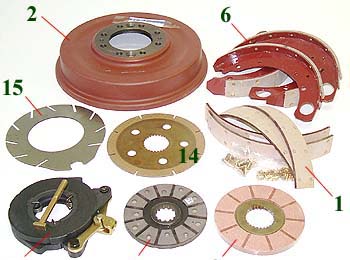

1
|
B1849
|
1851062M91
202631
|
Lining Set - 2 wheels
|
Te20-MF35-MF135
MF148-245-550
MF240 with drum brakes
|
|
2
|
B6726
|
827707M5
|
Brake Drum
|
|

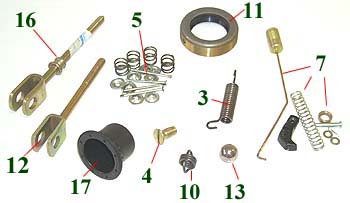

3
|
B5290
|
1890319M1
|
Spring (4 req.)
|
|
4
|
B1280
|
182278M1
|
Brake Drum Screw
|
|
5
|
B461
|
1810029M91
|
Fixing Set (2 req.)
|
MF35-135-148-240-245-550
|
|
6
|
B7849
|
1810517M92
|
Brake Shoe Kit
(2 wheels)
|
|
7
|
B5134
|
898654M92
892267M1
+ etc. etc.
|
Handbrake Linkage Repair Kit
|
MF135-148-65-165-168-175-178
MF185-188-240-250
|
|
8
|
B507
|
1822606M92
|
Brake Actuator Assembly
(1 req. per wheel)
|
MF (LANDINI) MF154-184
MF194 up to ser. no. 2235765
|
|
9
|
B504
|
1823112M91
|
H.D. Disc
2 per wheel req.
|
|
9a
|
B6366
|
1021314M91
|
Dry Brakes
MF65
MF165 with dry brakes
i.e. up to ser. no. 597745
MF175-178
(round axle housing=dry brakes)
|
|
10
|
B5184
|
1005510M1
|
Disc Spring
(6 per tractor)
|
|
11
|
B3783
|
1860482M91
|
Axle Brake Seal
|
|
12
|
B5135
|
184334M1
|
Brake Pull Rod
|
|
13
|
B462
|
16779X
|
Ball
Suits wet + dry brakes
|
Dry Brakes, B462 - 5 per wheel
|
|
Wet Brakes, B462 - 6 per wheel
|
|
14
|
B3816
|
1860964M2
|
Sintered Metal Disc
(10 req. per tractor)
|
Wet Brakes
(square axle housing=wet brakes)
MF165 with wet brakes
i.e. from new ser. no. 100001
(MF240 wet brakes) 168-185-188
250-265-275-285-290
MF350-355-360-365-375-390-398
MF399-565-575-590-595-675-690
MF698-699-1080-1085
|
|
15
|
B3817
|
1860965M2
|
Intermediate Disc
(6 req. per tractor)
|
|
16
|
B463
|
1861676M91
|
Brake Pull Rod
|
|
17
|
B7352
|
1860959M1
|
Brake Cover Seal
|
