Specials
|
|
| |
|
Single
Diaphragm Types
NOTE: Parts shown are BARE-Co parts - original part numbers are shown
for reference only
|
|
Latest "LUK" update kit supplied
|
|
Application
|
Clutch Kit
|
Clutch Assembly
|
Main Drive Plate
|
PTO Plate
|
Thrust Bearing
|
Pilot Bearing
|
|
MF3050 - 3060 - 3065
3070 - 3080 - 3090
3055 - 3075 - 3085
3095
|
B9278
*
|
B268
Latest Uprate Kit
Includes B270 plate
=3713903M91
|
B270
=3382760M1
3615366M1
13" x 2" x 23 splines
Rigid Centre Ceramic Plates
|
N/R
|
B1230
=
3384863M93
|
N/R
|
|
|
B268 Uprated kit should
be fitted to early tractors.
|
|
|
MF2620 - 2640 - 2645
2680 - 2685 - 2720 - 2725
3610 - 3630 - 3635 - 3645 - 3650 - 3655 - (3670 less Dynashift)
|

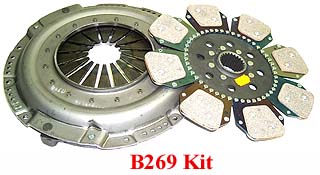

B9283
*
|
B269
Latest Uprate Kit
Includes B271 plate
=3713267M00
|
B271
=3615367M1
Latest 8 Blade
14" x 2" x 23 splines
Ceramic 8 Pads
|
N/R
|
B1230
=
3384863M93
|
N/R
|
|
|
If replacing early 6
blade plate you must fit B269 kit (higher clamp load)
|
|
|
* Full kit includes
clutch assy, plates and all bearings shown.
|
|
|
