Instruments
incl. Tractor Meter
NOTE: Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
See: TRACTOR
METER & DRIVES - BELOW
|

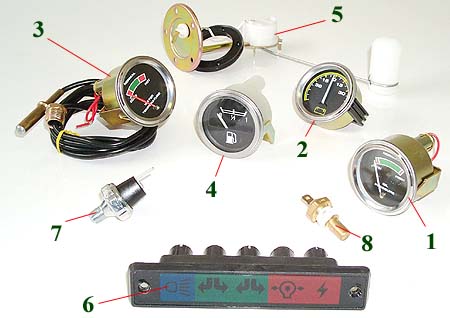

Application
|
1
Oil Pressure Gauge
|
2
Ammeter
|
3
Water Temp. Gauge
|
4
Fuel Gauge
|
5
Fuel Tank Sender
|
|
TE20-MF35 Petrol
|
B3835
=1853097M91
|
B3836
=894843M1
|
B3834
=881396M91
2" Universal Type with Dual Thread Adaptor
1.7mtr (67") Capillary Tube
|
NOT FITTED
|
NOT FITTED
|
|
TE20-MF35 Diesel
MF165
|
NOT FITTED
|
|
MF135-MF148
|
B3834
=881396M91
2" Universal Type with Dual Thread Adaptor
1.7mtr (67") Capillary Tube
|
B3799
=898418M1
|
B3802
=897403M91
|
|
MF165-MF168-MF175
MF178-MF185-MF188
|
B3801
=897389M91
|
|
MF240-245-250
|
NOT FITTED
|
B397
=1877719M92
(electric)
|
B398
=1877717M92
|
B399
=1661794M91
|
|
MF265-275-285-290-298
|
NOT FITTED
|
B400
=1678517M2
|
|
MF565-575-590
|
N/A
|
|
|
6
Warning Lamp Housing
|
7
Oil Pressure Switch
|
8
Water Temp. Sender
|
|
MF240-245-250-265-275
290-298-550-565-575
MF590-595
|
B394
=1663555M92
|
B395
=3599307M91
|
B396
=1877731M92
|
|
MF675-690-698-350-365
375-390-398-3050-3060
3065-3070-3080-3090-3095
|
N/A
|

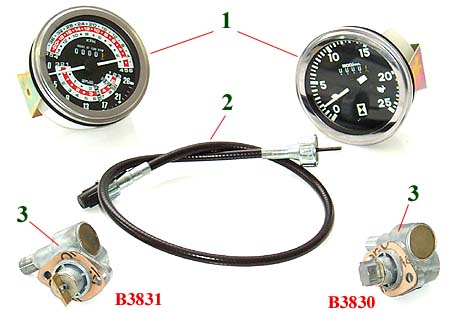

Application
|
Transmission
|
1
Tractor Meter
|
2
Cable Assembly
|
3
Drive Adaptor
|
|
MF35 Petrol (Deluxe)
MF135 Petrol
|
ALL
|
B3818
=1850092M93
|
B3824
=829488M91
|
Not Fitted
|
|
MF35 4 cyl. Diesel (Deluxe)
|
B3818
=1850092M93
|
B3829
=829487M91
|
B3830
826127M2
=829489M91
|
|
MF35 3 cyl. Diesel
|
B3819
=890223M92
|
B3826
890232M91
=890420M91
|
B2830
Complete Assembly
Replaces:
37416751
33473106
30854
|
|
MF135-MF148
|
6 Speed Trans.
|
B3820
=899423M91
|
B3827
=882539M91
|
|
Multipower
|
B5293
=899657M91
|
|
MF240-245-250-550
|
ALL
|
B7469
=1877718M92
1674638M92
|
B3828
=828033M92
|
|
MF65
|
B5186
=828032M1
|
N/A
|
|
MF165-MF168-MF175-MF178
MF185-MF188
|
6 Speed Trans.
|
B3821
=899421M91
|
B3829
=882021M91
|
B3831
=2758346
1853144M1
|
|
8 Speed Trans.
|
B5294
=908473M1
|
|
Multipower
|
B3822
=899663M91
|
|
MF265-275-285-290-565
MF575-MF590-MF595
|
ALL
|
B5164
=1674637M91
|
|
|
