MF
Internal Hydraulics
NOTE: Parts shown are BARE-Co parts - original part numbers
are shown for reference only
|
Ref
|
Part No.
|
Replaces
|
Description
|
Nominal
Pressure
|
Application
|
|

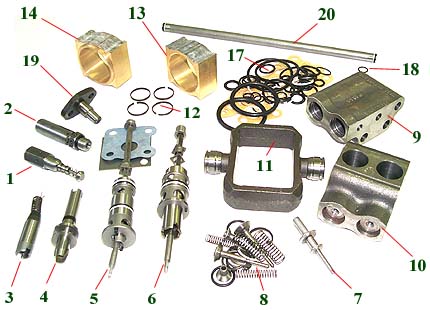

1
|
B703
|
204887
|
Relief Valve
|
2050 p.s.i.
|
Te20 to no. 330043 (valve in
hyd. pump)
|
|
2
|
B702
|
883402M94
|
2750 p.s.i.
|
MF35, MF65
|
|
B2389
|
884747M91
|
2950 p.s.i.
|
MF135, 148, 165, 168, 175,
178, 1080, 1085
|
|
3
|
B705
|
1053
|
Control Valve
[B708 includes drilling template to update early pumps]
|
Te20 (replaces all types)
|
|
4
|
B706
|
189427M92
|
MF35, MF65
|
|
5
|
B708
|
1862486M96
|
MF135, 148, 165, 168, 175,
178
MF185, 188 prior to MKlll pump only
|
|
5A
|
B5209
|
1617141M91
|
MF1080 , 1085 (US
Model 285) |
|
6
|
B5208
|
1681789M91
1870763M92
|
MF148, MF165, MF168, MF185,
MF188
*MKlll pump only MF240, 250, 265, 275
(MF285 Non USA model), 290, 298, 550, 565, 590, 675, 690
MF698, 699, 365, 370, 390, 398, 399, 1080
|
|
7
|
B704
|
2496
|
Poppet Valve (4 req.)
|
Te20 hyd. pump end plate
|
|
8
|
B2374
|
1810678M91
|
Valve Chamber Kit (2 req.)
(includes 3 alt circlip types)
|
All MF models after Te20
i.e. Mkl - Mkll - Mklll pumps
|
|
9
|
B2375
|
184471M1
|
Valve Chamber
(valves not included)
|
MF35, MF65 (2 req.)
|
(23mm dia pistons)
|
|
10
|
B6629
|
1868734M3
888702M1
1868435M3
|
Complete Valve Chamber
(includes valves & plugs)
Latest design with large dia wire circlips
|
MF135, 148, 165, 168, 175,
178, 185, 188
MF1080, 1085, MF240, 245, 265, 275, 290
MF550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699
|
|
11
|
B2379
|
190799M1
|
Piston
(2 req.)
|
MF35, MF65
|
(23mm dia)
|
|
B2380
|
186038M1
|
All MF models after MF65
|
(25mm dia)
|
|
12
|
B2381
|
892604M1
|
Piston Ring
(4 req.)
|
MF35, MF65
|
(23mm dia)
|
|
B2382
|
897493M1
|
All MF models after MF65
|
(25mm dia)
|
|
13
|
B2377
|
180924M2
|
Rear Cam Block (without lip)
|
All MF models after Te20
|
|
14
|
B2378
|
180925M2
|
Front Cam Block (with lip)
|
|
15
|

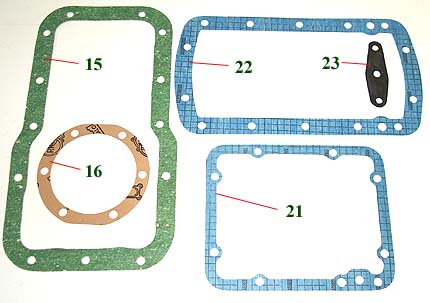

B2383
|
181408M1
|
Hyd. Lift Cover Gasket
|
|
16
|
B1839
|
181217M1
|
Side Plate Gasket
|
All non Italian models incl.
Te20
|
|
17
|
B1802
|
894906M91
|
"O" Ring Kit
Pump + Lift cover
|
MF35, 65, 135, 148, 165, 168,
175, 178, 185, 188
*MKll - lll pumps use full kit below
|
|
B4802
|
No Equivalent
|
BARE-Co Full Kit - all internal
gaskets + "O" rings
Covering Mkl - Mkll - Mklll pumps + hyd. lift cover
|
Universal kit covers all (non
Italian)
MF models after Te20
i.e. MKl - MKll + MKlll pumps
|
|
18
|
B466
|
195561M1
|
Standpipe "O" Ring (317mm)
|
All (non Italian) models from
MF35 onwards
|
|
B467
|
195874M1
|
Standpipe Backup Ring
|
|
19
|
B5136
|
898643M1
|
Hydraulic Pump Locating Dowel
|
|
20
|
B468
|
898229M1
|
Plain Standpipe (317mm)
Can be used to decommission pressure control on late tractors
|
MF35, 65, 135, 165, 175, 178
|
|
21
|
B1837
|
4082
|
Pump Base Gasket
|
Te20
|
|
22
|
B1836
|
7042
|
Lift Cover Gasket
|
|
23
|
B1840
|
104275
|
Ram Cylinder Gasket
|
|
|
