Front
Axle, Hub - JD4030 & various
NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.

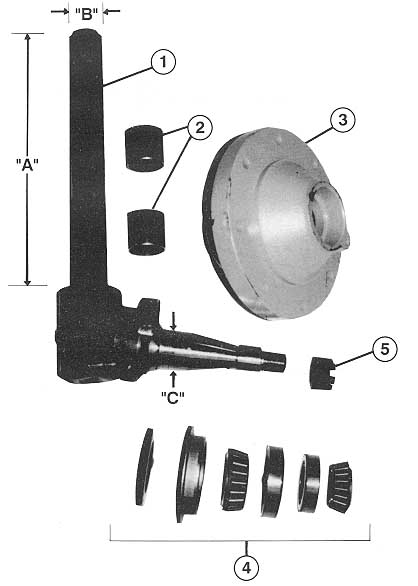

Front Axle & Hub - JD4030
- 4040 - 4050 - 4230 - 4240 - 4250 - 4430 - 4440 - 4450
|
Ref.
|
PART No.
|
REPLACES
|
NOTES
|
DESCRIPTION
|
|
1
|
B7681
|
AR81954 (AR69323)
|
4030 - 4230 - 4430
tractors will require UPRATED B5476 Bearing Kit
|
Axle A = 374mm B = 44.6mm C = 50mm
|
|
2
|
B5484
|
R49835
|
X
|
Bush 44.6mm I.D.
|
|
3
|
B5487
|
R49839 (R52287)
|
X
|
Front Hub (6 Bolt) ROUND CAP
|
|
B5488
|
R49841
|
X
|
Front Hub (8 Bolt)
|
|
4
|
B5475
|
X
|
ORIGINAL 4030 - 4230 - 4430
|
Wheel Bearing Kit (2 req)
45.8mm I.D. Inner Brg.
|
Including Wear Ring
|
|
B5476
|
X
|
UPRATED 4030 - 4230
- 4430
+ All above
|
Wheel Bearing Kit (2 req)
50mm I.D. Inner Brg.
|
Including Wear Ring
|
|
5
|
B7388
|
14H920
|
X
|
Castellated Nut 1"
|
|
|
