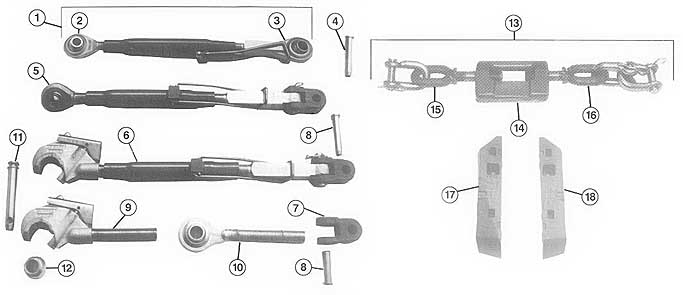

Linkage
- 2
NOTE: Parts shown are BARE-Co parts - original part
numbers are shown for reference only.
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B6695
|
AT23758
(AL39170)
|
TOP LINK
|
1020 - 1120 - 2020 - 2120 - 1030
- 1130
1630 - 1830 - 2030 - 2130 - 940 - 1040 - 1140 1640 - 1840 - 2040
- 2040S - 2140 - 2240 - 1550 1750 - 1850 - 1950 - 2150 - 2255
- 2350 - 2550
|
|
2
|
B6710
|
AT23759
|
L.H. THREAD END 20mm EYE
|
|
3
|
B6711
|
AL18136
|
R.H. THREAD END 1" EYE
|
|
4
|
B592
|
AR21912
|
20mm dia TOP LINK PIN
|
|
5
|
B2006
|
|
TOP LINK (WITH BALL END)
|
3030 - 3040 - 3120 - 3130 - 3140
|
|
6
|
B593
|
|
TOP LINK (WITH QUICK HITCH)
|
|
7
|
B7510
|
L41865
T28353
|
KNUCKLE
|
|
8
|
B2747
|
AT21754
|
PIN 3/4" x 2 1/2"
|
|
9
|
B594
|
|
1 1/4" R.H. QUICK HITCH END
|
|
10
|
B7483
|
|
1 1/4" UNC R.H. END 1" EYE
|
|
11
|
B81
|
R53296
|
TOP LINK PIN 1" DIA
|
|
12
|
B5129
|
F2681R
|
QUICK HITCH BALL 2" O.D. - 1" I.D.
|
|
13
|
B595
|
VARIOUS
|
UNIVERSAL
STABILISER ASSEMBLY
(ADJUST RANGE 41 to 49cm)
|
1120 - 1030 - 1130 - 2030 - 2130
1630 - 3030 - 3130 - 940 - 1040 - 1140
1640 - 1840 - 2040 - 2040S - 2140 - 3040
3140 - 3340 - 3640 - 1850 - 1950 - 2250
2450 - 2650 - 2850 - 3050 - 3150 - 3350
|
|
14
|
B484
|
|
TURN BUCKLE
|
Suits Bare-Co B595 Stabiliser
|
|
15
|
B483
|
|
L.H. THREAD EYE
|
|
16
|
B1858
|
|
R.H. THREAD EYE
|
|
17
|
B596
|
R39513
|
L.H. SWAY BLOCK
|
3020 - 4020 - 4030 - 4040 - 4050
4230 - 4240 - 4250 - 4320 - 4430
|
|
B947
|
T30277
|
940 - 1020 - 1030 - 1040 - 1120
- 1130
1140 - 1350 - 1550 - 1630 - 1640 - 1750
1830 - 1850 - 1950 - 2020 - 2030 - 2040 - 2040S 2120 - 2130 -
2140 - 2250 - 2450 - 2650 - 2850
|
|
18
|
B946
|
T30276
|
R.H. SWAY BLOCK
|
|
B597
|
R39512
|
3020 - 4020 - 4030 - 4040 - 4050
4230 - 4240 - 4250 - 4320 - 4430
|
|
|
