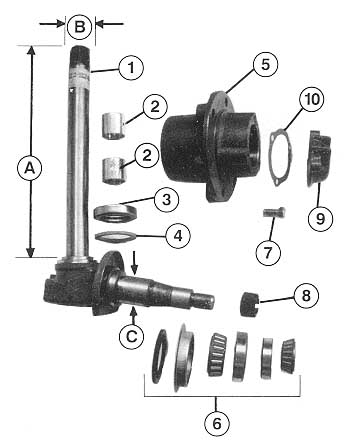

Front
Axle, Hub - JD3130 & various
NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.
JD3130 (from
No. 186270) + JD3040 - 3140 - (3050 - 3350 STD DUTY)
IDENTIFICATION: 44.5mm
dia. King Pin / 45.8mm I.D. Inner Wheel Bearing
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
|
1
|
B7671
|
AR74606
|
Axle A = 375mm B = 44.5mm
C = 45.8mm
|
|
2
|
B5483
|
T34546
|
Bush (44.5mm I.D.)
|
|
3
|
B5485
|
JD8412
|
Thrust Bearing (44.5mm
I.D.)
|
|
4
|
B5480
|
T31749
|
Lower Seal
|
|
5
|
B7673
|
T21545
|
Front Hub
|
|
6
|
B5474
|
X
|
Wheel Bearing Kit
(2 REQ) incluing WEAR RING
|
|
7
|
B5477
|
JD21
|
Wheel Stud 9/16"
|
|
8
|
B7388
|
14H920
|
Castellated Nut1"
|
|
9
|
B7667
|
A1555R
|
Hub Cap
|
|
10
|
B833
|
A1556R
|
Gasket
|
|
|
