Specials
|
|
| |
|
Linkage
- 1
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown for reference
only.
|

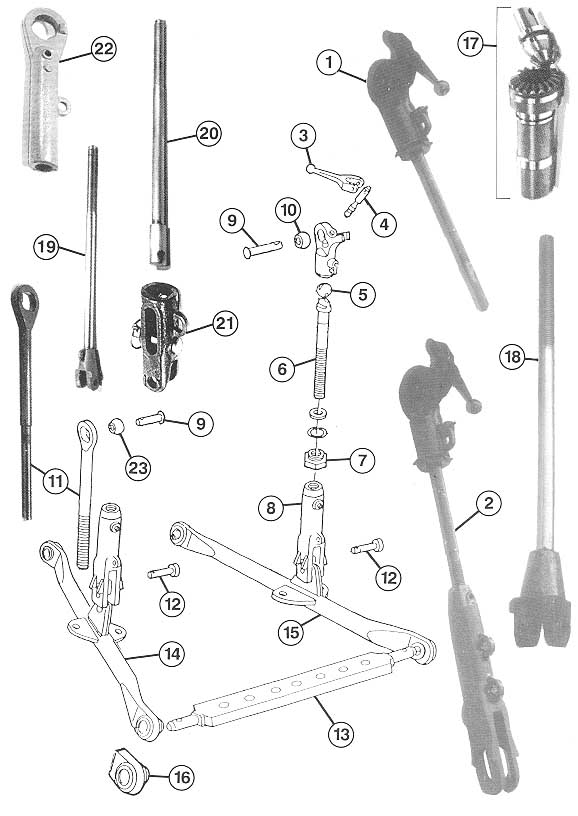

Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7611
|
|
LEVEL BOX HEAD ASSY
|
1020 - 1120 - 2020 - 2120 - 1030
1130 - 1630 - 940 - 1040 - 1140
(1830 - 2030 - 2130 - 2150 - 2255 - 2240
2350 - 2550 Early models fitted with ball
drive
levelling box) identify by 45 degree input shaft
(handle) *B7611 head assy can be fitted to ALL
3/4 cylinder models as alternate to more expensive gear drive
levelling box
|
|
2
|
B598
|
|
LEVELLING BOX ASSY
(ADJUST LENGTH 55 - 65 cm)
|
|
3
|
B599
|
T21559
|
HANDLE
|
|
4
|
B7612
|
T21558
|
INPUT SHAFT
|
|
5
|
B7609
|
T22399
|
DRIVE BALL
|
|
6
|
B7607
|
T25823 / T25835
|
LEVELLING BOX SHAFT
|
|
7
|
B7608
|
T21758
|
LOCK NUT
|
|
8
|
B7606
|
R48595
|
FORK
|
1020 - 1120 - 2020 - 2120 - 1030
- 1130 -
1630 - 1830 - 2030 - 2130 - 940 - 1040 -
1140 - 1640 - 1840 - 2040 - 2040S - 2140
2150 - 2255 - 2240 - 2350 - 2550
|
|
9
|
B73
|
AT21754
|
LIFT PIN (UPPER)
|
|
10
|
B7610
|
T21901
|
LEVELLING ROD BALL
|
|
11
|
B7605
|
L28372
|
LIFT ROD (470mm)
|
|
12
|
B1640
|
AR55695
|
LEVELLING BOX PIN
|
|
13
|
B2722
|
L11581
|
DRAW BAR (CAT 2)
|
|
14
|
B7613
|
AL26683
|
L.H. LOWER LINK - 840mm
|
All above models equipped with
STD 840mm links
|
|
15
|
B7614
|
AL26682
|
R.H. LOWER LINK - 840mm
|
|
16
|
B652
|
|
WELD ON END (HEAVY DUTY)
|
All European Models
|
|
17
|
B764
|
AL33494
|
GEAR KIT
|
3030 - 3130 - 3040 - 3140
(Less Cab)
|
|
18
|
B765
|
AL19647
|
LEVELLING BOX SHAFT
|
|
B7642
|
AT26424
|
LEVELLING BOX SHAFT 1" DIA
|
3120
|
|
19
|
B7642
|
AT26424
|
LIFT ROD 1" DIA
|
|
20
|
B768
|
AL23422
|
LIFT ROD 1 1/8" DIA
|
3030 - 3130 - 3040 - 3140
|
|
21
|
B766
|
L28930
|
FORK
|
|
22
|
B767
|
L33534
|
SOCKET 1 1/8" THREAD
|
|
B7643
|
L33536
|
SOCKET 1" THREAD
|
3120
|
|
23
|
B7610
|
T21901
|
LIFT ROD BALL
|
2140 - 3030 - 3130 - 3040 - 3140
|
|
|
