Rear
Axle: PTO
NOTE: Parts shown are BARE-Co parts - original part
numbers are shown for reference only.
|

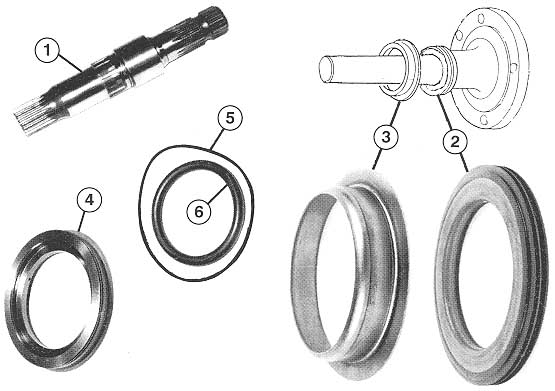

Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7615
|
AT29707
|
PTO SHAFT 540 rpm
1 3/8" x 6 SPLINE
|
1020 - 2020
with flangeless shaft as
illustrated
1120 - 2120 - 1030 - 1130 - 1630 - 1830
- 2030
2130 - 840 - 940 - 1040 - 1140 - 1640 - 1840
2040 - 2040S - 2140 - 1350 - 1550 - 1750
1850 - 1950 - 2250 - 2450 - 2650 - 2850
|
|
B7616
|
T30803
|
PTO SHAFT 1000 rpm
1 3/8" x 21 SPLINE
|
|
B7617
|
R41756
(R41752)
|
PTO SHAFT 540 rpm
1 3/8" x 6 SPLINE
|
3020 from
serial no. 123000
4020 from serial no. 201000
3120 - 3030 - 3130 - 4030
- 4230 - 4430 - 3040
3140 - 4040 - 4240 - 4440 - 3150 - 3350 - 4350
|
|
B7618
|
T28672
(R80744)
|
PTO SHAFT 1000 rpm
1 3/8" x 21 SPLINE
|
|
2
|
B7639
|
AT20703
|
REAR AXLE OIL SEAL
|
1020 - 1120 - 2020 - 2120 - 1030
- 1130 - 1630 1830 - 2030 - 2130 - 840 - 940 - 1040 -1140
1640 - 1840 - 2040 - 2040S - 2140 - 1350
1550 - 1750 - 1850 - 1950
|
|
3
|
B7640
|
L35542
(T21429)
|
REAR AXLE SEAL SLEEVE
|
|
4
|
B7674
|
L31017
(L28027)
|
BRAKE PISTON
|
3030 - 3120 - 3130
|
|
5
|
B7675
|
T30349
|
BRAKE PISTON SEAL
|
3030 - 3040 - 3120 - 3130 - 3140
|
|
6
|
B7676
|
T28473
|
|
|
