Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|

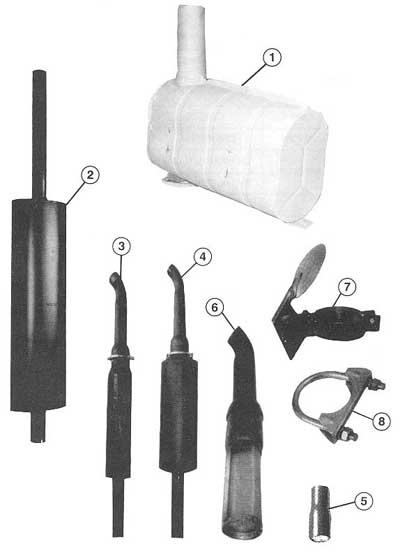

1
|
B106
|
AL31552
|
UNDER HOOD MUFFLER
(NON SPARK ARRESTING)
|
840 - 940 - 1040 - 1140
(Early 1350 - 1550
- 1750 - 1850 with 2 bolt flange)
|
|
B107
|
AL31492
|
1640 - 1840 - 2040 - 2040S - 2250
- 2450
|
|
B108
|
AL35753
|
2140 - 2650 - 2850
|
|
2
|
B1097
|
AL27388
|
VERTICAL OVAL MUFFLER
(NON SPARK ARRESTING)
|
AUSTRALIAN CUSTOMERS
SHOULD USE APPROVED
SPARK ARRESTORS BELOW
|
 |
|
1020 - 1120 - 830 - 930 - 1030
1130 - 1630 - 840 - 940 - 1040
1140 - 1350 - 1550 - 1750 - 1850
|
|
B1098
|
AL27389
|
2020 - 2120 - 1830 - 2030 - 2130
|
|
3
|
B1094
|
100mm dia body
|
APPROVED SPARK ARRESTOR
(AS1019 STD)
|
2 1/2" I.D. inlet to 50 H.P.
|
|
4
|
B1095
|
150mm dia body
|
2 1/2" I.D. inlet to 75 H.P.
|
|
B2529
|
175mm dia body
|
100 H.P. SPARK ARRESTOR
APPROVED to AS1019 STD
|
2 7/8" I.D. inlet - 100 H.P.
|
|
5
|
B1096
|
ADAPTOR 2 3/8" O.D. - 2 1/2" I.D.
|
Adapts B2427 / B2527 arrestor to J.D.
|
|
6
|
B2008
|
REPLACEMENT STAINLESS ELEMENT
|
Suits B2426 - B2526 spark arrestor
|
|
B2009
|
Suits B2529 spark arrestor
|
|
7
|
B2978
|
50 to 56mm
|
2" to 2 3/16"
|
Heavy duty
EXHAUST RAIN CAP
|
|
B7446
|
57 to 62mm
|
2 1/4" to 2 7/16"
|
|
B7447
|
63 to 68mm
|
2 1/2" to 2 11/16"
|
|
B7449
|
76 to 81mm
|
3" to 3 3/16"
|
|
B7450
|
89 to 90mm
|
3 1/2" to 3 9/16"
|
|
B7451
|
102mm
|
4"
|
|
8
|
ZINC PLATED EXHAUST CLAMPS
SEE GENERAL
SECTION FOR FULL RANGE
|
