NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.
|

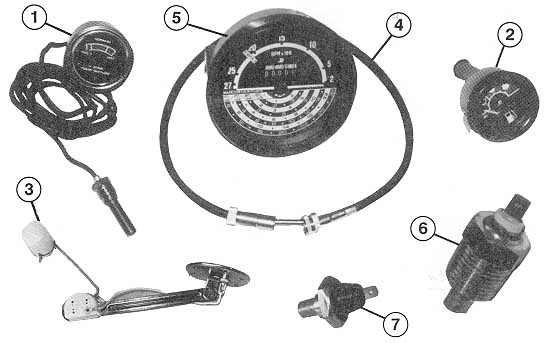

Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B3834
|
AL24293
AL24186
|
TEMPERATURE GAUGE
CAPILLARY
(NON ELECTRICAL)
|
Following models fitted with original
capillary tube gauge
1020 - 1120 - 2020 - 2120 - 3120
1030 - 1130 - 1630 - 1830 - 2030
2130 - 3030 - 3130
|
|
2
|
B7722
|
AL24294
|
FUEL GAUGE
|
All models shown above
|
|
3
|
B1175
|
AT31619
|
FUEL SENDER UNIT
|
All models shown above plus
following models with metal fuel tank
1040 - 1140 - 1640 - 2040
2140 - 3040 - 3140
|
|
B948
|
AL33498
|
Following models with
plastic fuel tank
1040 - 1140 - 1640 - 2040
2140 - 3040 - 3140
|
|
4
|
B1168
|
AL23837
|
HOUR METER CABLE
|
1020 - 1120 - 1030 - 1130 - 1630
- 1830
|
|
B1169
|
AL23838
|
2020 - 2120 - 2030 - 2130
|
|
B1170
|
AT27372
|
3120 - 3130
|
|
5
|
B7699
|
AL30800
|
HOUR METER
(CABLE DRIVEN)
|
1020 - 1120 - 1030 - 1130 - 1630
- 1830
2020 - 2120 - 2030 - 2130 - 3120 - 3130
|
|
6
|
B1171
|
AL24527
|
TEMPERATURE
SENDER UNIT
|
All European models fitted with
electrical temp gauge
|
|
7
|
B1172
|
AR27977
(AT85174)
|
OIL PRESSURE
SENDER UNIT
|
All European models + following
U.S. models
2010 - 3010 - 3020 - 4010
4020 - 5010 - 5020
|
|
|
