Front

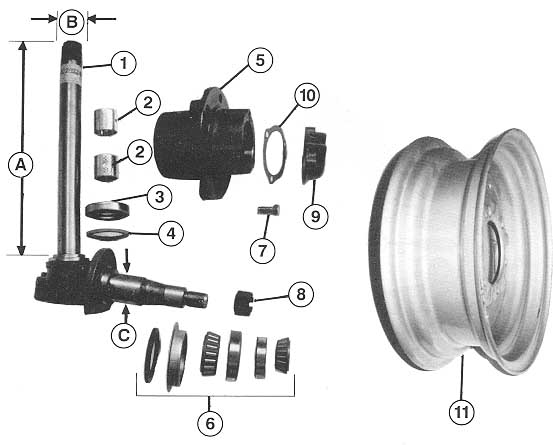

Axle, Hub, Wheel - STANDARD DUTY
NOTE: Parts shown are BARE-Co parts - original part
numbers are shown for reference only.
STANDARD DUTY axle models only
IDENTIFICATION: 38mm dia. King Pin ( HEAVY DUTY has
44.5mm King Pin)
JD1640 - 1840 - 2040 - 2040S - 2140 - (2250*)
- 2350 - 2450 - 2550 - 2650 - 2850
[* SEE 2250 LIGHT DUTY
Page - (Round Hub Cap) model]
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
|
1
|
B7670
|
AL28222
|
Axle A = 380mm B = 38mm C = 45.8mm
|
|
2
|
B5481
|
T21553
|
Bush (38mm I.D.)
|
|
3
|
B5482
|
JD8410
|
Thrust Bearing (38mm I.D.)
|
|
4
|
B5479
|
T15284
|
Lower Seal
|
|
5
|
B7673
|
T21545
|
Front Hub
|
|
6
|
B5474
|
X
|
Wheel Bearing Kit (2 req) including
WEAR RING
|
|
7
|
B5477
|
JD21
|
Wheel Stud 9/16"
|
|
8
|
B7388
|
14H920
|
Castellated Nut 1"
|
|
9
|
B7667
|
A1555R
|
Hub Cap
|
|
10
|
B833
|
A1556R
|
Gasket
|
|
11
|
B6807
|
AL28212 (AR52506)
|
Wheel to suit 600 x 16" tyire
|
|
B6808
|
JD3039
|
Wheel to suit 750 x 16" tyre
|
|
|
