Engine
Kits and Parts: 3 Cylinder
NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.
3 Cylinder Models (European
& US engines)
|
THREE KIT LEVELS
| "EK" - suits in-frame
repair (EXCLUDES main bearings) Includes - Pistons/Liners,
Bearings etc. |

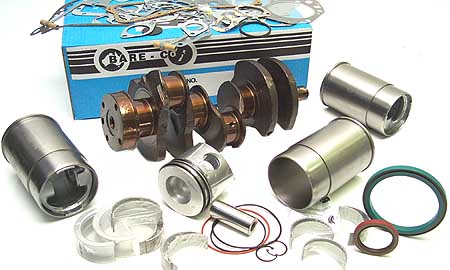

| "EKM" - includes
all typical items shown in the illustration above - less
crankshaft |
| "EKMC" - as above
but including a new crankshaft |
EKMC kits
can be held in stock as all components are standard size for instant
engine assembly
NOT
INCLUDED IN KIT:
(order separately)
IMPORTANT:
Con Rod bolts MUST be replaced
after release of tension.
Select correct Spec bolt from CONROD
Page
|
|
APPLICATION
|
ENGINE
TYPE
|
ENGINE
OVERHAUL
KIT
|
LINER
INCLUDING
SEALS
|
PISTON / LINER
KIT (1 cyl)
incl. 'O' Rings
|
RING SET
1 CYLINDER SET (3 ring)
|
GUDGEON
BUSH
|
|
1020 Up
to tractor serial no. 074999
'O' Ring grooved liner
|
3 - 152D
3 Cyl
98mm Bore
|
EK53
EKM53
EKMC53
|
B544
=AR51902
|
B5489
|
B5496
=AR70633
|
B5499
=T23471
(30mm I.D.)
|
|
1020 From
tractor serial no. 075000
to serial no 085099 plain liner
|
EK54
EKM54
EKMC54
|
B545
=T32340
|
B5490
=AR71591
|
|
1120 Up
to tractor serial no.074999
'O' Ring grooved liner
|
3 - 164D
3 Cyl
102mm Bore
|
EK55
EKM55
EKMC55
|
B546
=AR51903
|
B5491
|
B5497
=AR55759
|
|
1020 Tractor
serial no. 085100 to 199742
1120 Tractor serial no. 075000 to
199742
|
EK81
EKM81
EKMC81
|
B547
=T32343
|
B5492
=AR71593
|
|
1020 - 1120
From tractor serial no. 199742
830 - 930 - 1030 - 1130
|
EK82
EKM82
EKMC82
|
B5493
=AR78041
|
B5500
=R55647
(35mm I.D.)
|
|
840 - 940 - 1040 - 1140 - 2240
1350 - 1550 - 1630 - 1750 - 1850 - 2150
|
3 -179D
3 Cyl
106.5mm Bore
|
EK56
EKM56
EKMC56
|
B548
=R90059
R80724
|
B5494
=RE24458
|
B5498
=RE15674
|
|
1950
|
3 - 179T
3 Cyl
106.5mm Bore
TURBO
|
EK57
EKM57
|
B5495
=RE15600
RE22678
|
B5501
=R57451
(41mm I.D.)
|
|
|
·All pistons latest High Ring type. Pistons
after early
98mm bore feature:
Ni - resist reinforced ring groove
Molybdenum Keystone Compression Ring
Accumulator Groove
Spring type Chrome Oil Ring
Pistons supplied assembled and fitted to micro honed
centrifugally cast liners
466T - 466A Liners are Induction Hardened.
|
|
|
