NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.
|

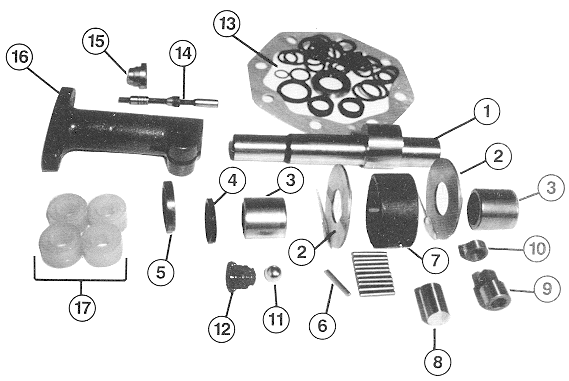

Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B6706
|
R39319 (R39177)
|
CAMSHAFT
|
1020 - 1120 - 2020 - 2120 - 3020
- 3120 - 1030
1130 - 1630 - 1830 - 2030 -2130 - 3030 +
Following Models when fitted with basic pump
(11.3 or 22.6CM3)
Identify - keyed clamped pump coupling (not splined).
3130 - 940 - 1040 - 1140 - 1640 - 2040 -
2040S - 2140 - 3040 - 3140 -
3640 - 1550 - 1750 - 1850 - 1950 - 1950N - 2150
2250 - 2255 - 2450 - 2650 - 2850 - 3650
|
|
2
|
B7647
|
R66164 (R39016)
|
THRUST WASHER
|
|
3
|
B7648
|
JD9858
|
NEEDLE BEARING
|
|
4
|
B7649
|
R63605 (R39182)
|
PACKING
|
|
5
|
B7650
|
AR39052
|
SEAL
|
|
6
|
B953
|
R39073
|
ROLLER (33 req)
|
|
7
|
|
B923
|
 |
|
R63629 (R39017)
|
|
BUSH
|
|
|
|
8
|
|
B7652
|
|
|
R63022 (R39068)
|
|
PISTON
|
|
|
|
Early Models i.e. 20 / 30 Series both Bush &
Pistons must be replaced
|
|
9
|
B7653
|
R68384 (R40756)
|
VALVE BODY
|
|
10
|
B7654
|
R72936 (R69032)
|
VALVE SEAT
|
|
11
|
B924
|
D2361
|
BALL (VALVE)
|
|
12
|
B925
|
R68553 (R39075)
|
VALVE SEAT / PLUG
|
|
13
|
B954
|
AR98993
|
PUMP SEAL KIT
|
|
14
|
|
B7637
|
|
|
R54969 (T28537)
|
|
ROCKSHAFT VALVE SPOOL
|
|
|
ALL ABOVE MODELS (ANY PUMP) + 1850
|
|
15
|
|
B7638
|
|
|
T28538
|
|
VALVE SEAT
|
|
|
|
Early Models (20 series) both Spool & Seat
must be replaced
|
|
16
|
B926
|
T22914
|
PUMP DRIVE SHAFT
|
1020 - 1120 - 2020 - 2120 - 1030
1130 - 1630 - 1830 - 2030 -2130
|
|
B927
|
L34572
|
PUMP DRIVE SHAFT
|
Following models whenfitted with basic pump -
keyed pump shaft (not splined).
1640 - 2040 - 2040S - 2140 - 1950
1950N - 2250 - 2450 - 2650 - 2850
|
|
B7651
|
T28263
|
PUMP DRIVE SHAFT
|
3120 - 3030 - 3130
when fitted with basic pump - keyed pump (not splined).
|
|
17
|
B5462
|
AR49427
(AR34098)
|
SET of 4 BUSHES
(PUMP COUPLING)
|
1020 - 1120 - 2020 - 2120 - 3020
- 3120
1030 - 1130 - -1630 - 1830 - 2030 - 2130
(3130 with keyed pump shaft)
ALL U.S. MODELS 10 SERIES to 55 SERIES
|
|
|
