Specials
|
|
| |
|
Steering
- 2WD Hydrostatic
NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.
See below for U.S. Models
Steering - 2WD models (hydrostatic steering ) - no drag link. Single
Ram.

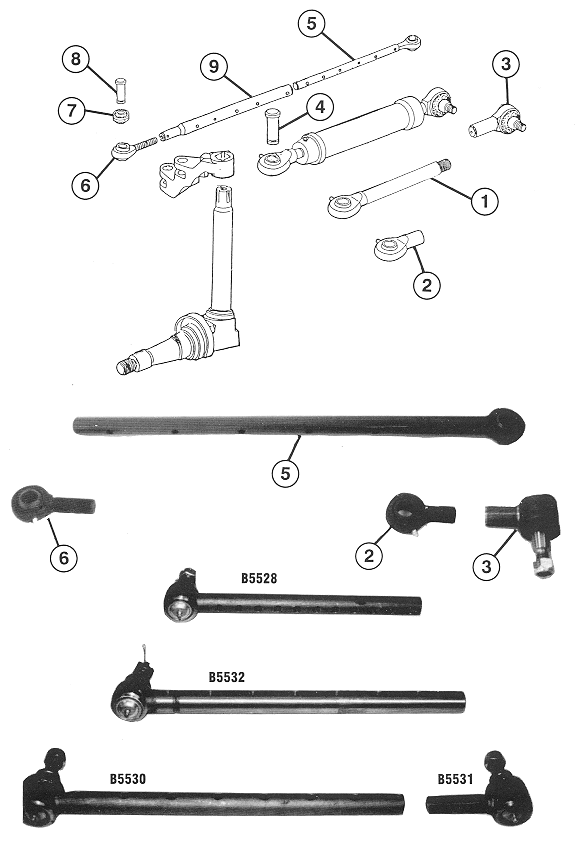

Early type Tie Rod as illustrated (locating bolts through centre tube)
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B5550
|
AL37202
(AL33038)
|
PISTON ROD
|
Suits Early Cylinders with port
in Ram head (not in ram tube)
Models as shown below
|
|
2
|
B5551
|
|
WELD ON BALL END
for Piston Rod
|
1640 - 2040 - 2040S
- 3040 - 3140
|
|
3
|
B5552
|
|
WELD ON BALL JOINT
(Fixed End)
|
|
4
|
B5553
|
L36085
(L35227)
|
RAM PIN
25mm X 67mm
|
|
5
|
B5554
|
AL31498
|
TIE ROD END
6 Cross Holes as illustrated
|
Above (Early) Models with cross
drilled tie rod.
For Late type notched shank tie rod use weld-on ends - shown below.
|
|
6
|
B5555
|
AL31497
|
TIE ROD END
24mm diameter thread
|
|
7
|
B5556
|
|
WELD ON BALL END
|
Above models with early or late
tie rod + 2140
|
|
8
|
B5557
|
L36086
|
PIN ( TIE ROD)
25mm x 75mm
|
|
9
|
B5558
|
L34445
|
CENTRE TUBE
Cross Drilled as illustrated
|
3040 - 3140
Only
|
|
APPLICATION
|
OUTER ROD END
|
INNER ROD END
|
|
3010 - 3020 - 4010
- 4020 - 4320
|
B5528
300mm long 3/8" Holes
= AR51584
|
B5529
7/8" R.H. Thread
= AR27351
|
|
4030 - 4230 - 4430
- 4040 - 4240
4440 - 4050 - 4250 - 4450
|
B5530
1" diameter 8 Holes
= AR63592
|
B5531
7/8" R.H. Thread
= AR63588
|
|
4630 - 4640 - 4650
|
B5532
27mm diameter 8 Holes
= AR63833
|
B5533
1" R.H. Thread
= AR63589
|
|
|
