Ref
|
Part
No.
|
Replaces
|
Description
|
Application
|
|

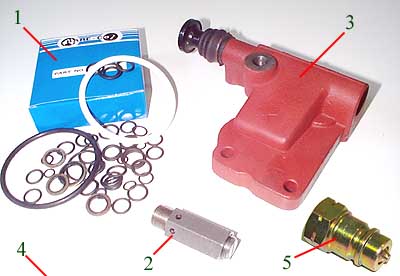

1
|
B2804
|
|
Hydraulic
System "O" Ring Kit
|
Dexta
- Super Dexta
Major - Power Major - Super Major
|
|
B2803
|
2000-3000-2600-3600-2310-2610-2910-4100
|
|
B1422
|
5000-7000
(5600-6600-7600-5700-6700-7700
with
95mm ram piston)
|
|
B1423
|
(5600-6600-7600-5700-6700-7700
with 105mm ram piston)
5110-5610-6610-6710-6810-7610-7710
|
|
2
|
B5286
|
EIADDN984
1717251
|
Hydraulic
Cylinder Relief Valve
|
Major
- Power Major - Super Major
5000-7000
|
|
3
|
B8210
|
E0NND960AA
|
Tractor
Remote Hyd. Diverter Valve
|
2000-3000-4000-2600-3600-3900-2610
3610-3910-4110-4610
|
|

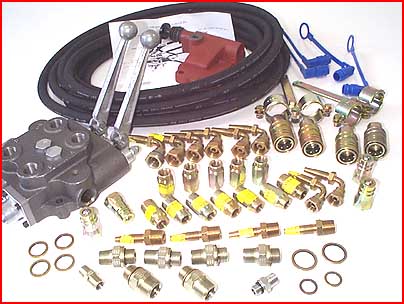

4
|
B1467
|
|
Remote
Hydraulic Kit
Includes:
- B8210
Diverter valve
- Control
valve
- Pioneer
breakaway kit
- All
hoses and fittings
|
|
|
With
Single Spool Control Valve to operate one double acting
ram
|
|
|
With
Double Spool Control Valve to operate two double acting
rams
|
|
|
B1468
|
|
|
B1469
|
|
As
above less diverter valve [not req.]
|
|
With
Single Spool Control Valve to operate one double acting
ram
|
|
|
With
Double Spool Control Valve to operate two double acting
rams
|
|
5000-7000
|
|
B1470
|
|
|
5
|
B3735
|
D3NNB964A
801618
|
1/2" BSP
Ford type Male tip
|
Various
|
