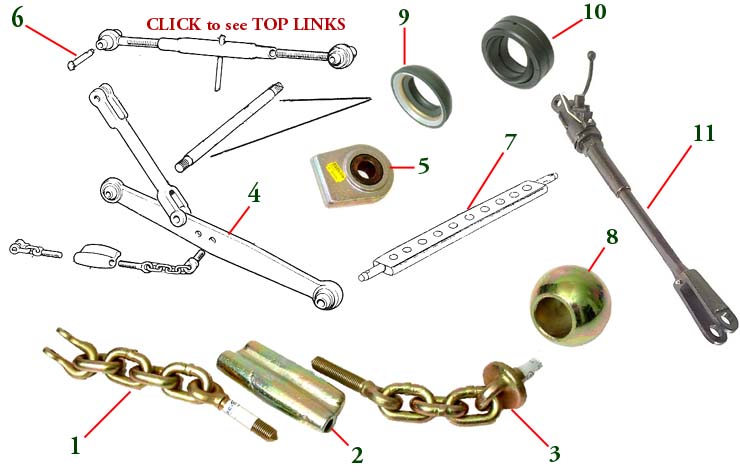

LINKAGE
PARTS
NOTE: Parts shown are BARE-Co
parts - original part numbers are shown for reference only.
|
REF
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B2678
|
4988445
|
EYE ASSEMBLY
|
415, 450, 480, 500, 540, 550 ,640
|
|
2
|
B2675
|
584731
|
CENTRE TUBE
|
411R, 415, 450, 480, 500, 540,
550, 640, 650, 750, 850, (Some 680)
55-46, 60-46, 65-46, 55-56, 60-56, 65-56
|
|
B2676
|
44012226
|
850, 1000
|
|
3
|
B2679
|
595165
|
LINK ASSEMBLY
|
415, 450, 480, 500, 540, 580
|
|
B2680
|
595048
|
550, 640
|
|
B2681
|
595814
|
650, 750
|
|
B2682
|
44018157
|
850, 1000
|
|
4
|
B501
|
81cm (32") Centre
|
CAT 1 LOWER LINK
|
Replace in pairs only, due to length variations
|
|
B147
|
97cm (38") Centre
|
CAT 2 LOWER LINK
|
|
5
|
B328
|
|
CAT 1 WELD ON END
|
As required
|
|
B652
|
|
CAT 2 H/DUTY HEAT TREATED
|
|
6
|
B74
|
561831
|
LINK PIN CAT 1
|
All CAT 1 linkage
|
|
B81
|
822483
|
LINK PIN CAT 2
|
All CAT 2 linkage
|
|
7
|
B121
|
4950973
|
DRAWBAR
|
All CAT 1 Models
|
|
B2722
|
595441
|
DRAWBAR (LONG TYPE)
|
All CAT 2 Models
|
|
8
|
B56
|
585350
|
CAT 1 LOWER LINK BALL
|
Cat 1 Models "Bolt-In" type |
|
B57
|
822441
|
CAT 2 LOWER LINK BALL
|
Cat 2 Models "Bolt-In" type
|
|
9
|
B1021
|
5121123
|
SENSOR SHAFT SEAL
|
45-66, 55-66, 60-66, 65-66, 70-66,
80-66, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90
|
|
10
|
B1022
|
5116244
|
SENSOR SHAFT BEARING
|
|
11
|
B9213
|
4981662
5088371
|
LEVELLING BOX
ASSEMBLY
|
550, 640, 55-46, 60-46,
65-46 |
|
B9214
|
4982390
|
500, 500S, 540, 540S,
446, 480 |
|
B9215
|
5086685
|
55-56, 60-56 |
|
|
