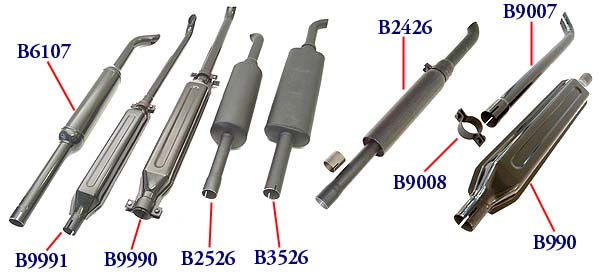

MUFFLERS
NOTE: Parts shown are BARE-Co parts - original
part numbers are shown for reference only.
|
MUFFLERS - NON SPARK ARRESTING
|
|
TRACTOR MODEL
|
MUFFLER PIPE SIZE
|
PART No.
|
DESCRIPTION
|
|
540, 640, 450, 550, 650, 480,
500, 600
with Australian (fabricated) Elbow
|
2" to 2 1/8" ID
|
B6107
|
Baked Enamel - 110 mm (4 3/8") dia body
|
|
With imported (cast) Elbow
411R, 446, 450, 466, 566, 666,
766, 500, 600, 540, 640, 550, 650, 480, 580, 680, 780, 55-46,
60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 50-66, 55-66, 60-66,
65-66, 70-66, 80-66, 80-76, 55-88, 65-88, 70-88, 80-88, 55-90,
60-90, 65-90, 70-90, 80-90, 60-93, 65-93, 72-93, 82-93, 60-94,
65-94, 72-94, 82-94
|
46mm (1.8") ID
|
B9991
|
Complete assembly (Baked Enamel)
|
B990
=5157240 |
Muffler ONLY |
B9007
=44905154 |
Extension Pipe |
B9008
=5116793
|
Clamp
|
|
880, 980, 1180, 1280, 1380, 90-90,
100-90, 110-90, 115-90, 1300, F100, F110, F115, F120
|
60mm (2 3/8") ID
|
B9990
=5123236
|
Complete with extension pipe ORIGINAL TYPE - Baked
Enamel
|
|
COMBINED SPARK ARRESTOR
MUFFLERS
|
|
** APPROVED to AS1019
Spark Arrestor Standard
|
|
TRACTOR MODEL
|
MUFFLER PIPE SIZE
|
PART No.
|
DESCRIPTION
|
|
540, 640, 450, 550, 650, 480,
500, 600
with Australian (fabricated) Elbow
|
2" to 2 1/8" ID
|
B2426
|
100mm (4") dia Body
|
|
B2526
|
150mm (6") dia Body
|
|
B3526
|
190 x 105mm (7 1/2" X 4") Oval Body
|
With imported (cast) Elbow
411R, 446, 450, 466, 566, 666,
766, 500, 600, 540, 640, 550, 650, 480, 580, 680, 780, 55-46,
60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 50-66, 55-66, 60-66,
65-66, 70-66, 80-66, 80-76, 55-88, 65-88, 70-88, 80-88, 55-90,
60-90, 65-90, 70-90, 80-90, 60-93, 65-93, 72-93, 82-93, 60-94,
65-94, 72-94, 82-94
|
46mm (1.8") ID
|
B7151
|
150mm (6") dia Body
|
|
880, 980, 1180, 1280, 1380, 90-90,
100-90, 110-90, 115-90, 1300, F100, F110, F115, F120
|
60mm (2 3/8") ID
|
B2527
|
150mm dia Body
|
|
B3527
|
190 x 105mm (7 1/2" X 4") Oval Body
|
|
|
