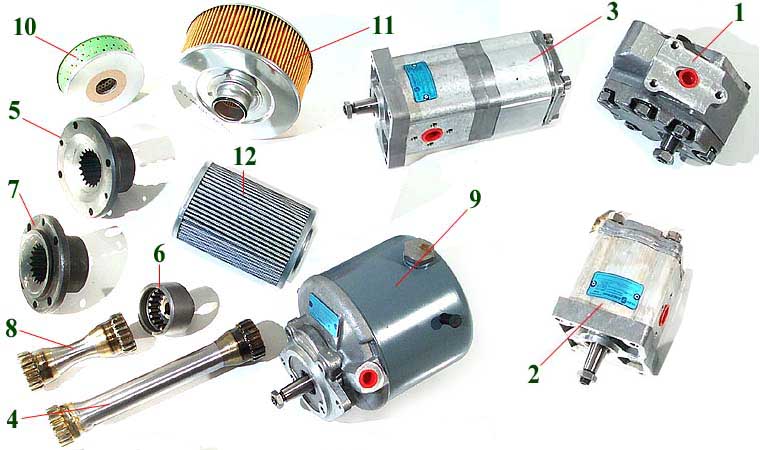

Ref.
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B9194
|
K962635
|
Hydraulic Pump
(internally mounted)
|
770-780-880-885-990-995
Selectomatic (white) models
1190-1194-1290-1294
|
|
|
2
|
B9197
|
K307945
|
Single Hydraulic Pump
Uprated 15cc
suits all models shown when
fitted with single hydraulic pump
|
1200-1210-1212-1390-1394-1410-1415-1490-1494
only when fitted with single pump as illustrated
|
|
3
|
B9195
|
K916535
|
Tandem Hydraulic Pump
|
1200-1210-1212-1390-1394-1410-1412-1490-1494
when fitted with tandem pump as illustrated
|
|
4
|
B1649
|
K944950
|
Pump Drive Shaft
|
1200 (late)-1210-1212-1390-1394
1410-1412-1490-1494
|
|
5
|
B1650
|
K910538
|
Pump Coupling - 4 7/16" (113mm)
dia.
|
|
6
|
B1653
|
K944947
|
Pump Coupling
|
1490-1494-1590-1594-1690-1694
|
|
7
|
B1652
|
K200465
|
Pump Coupling - 4 11/64" (106mm)
dia.
|
1590-1594-1690-1694
(less air conditioner)
|
|
8
|
B1651
|
K200464
|
Pump Drive Shaft
|
|
9
|
B9196
|
K957318
|
Power Steering Pump
|
990 (Selectomatic)-995-996-1200-1210-1212
1290-1294-1390-1394-1410-1412-1490
|
|
10
|
CR665
|
K964954
|
Filter
(power steering Pump)
|
|
11
|
CR3001
|
K920522
|
Hydraulic Filter
(internal)
|
770-880-885-990-995-996-1200-1210-1212
1410-1412-1190-1194-1290-1294
|
|
12
|
CR7054
|
K946095
|
Hydraulic Filter
(external)
|
1390-1394-1490-1494-1590-1594-1690-1694
|
