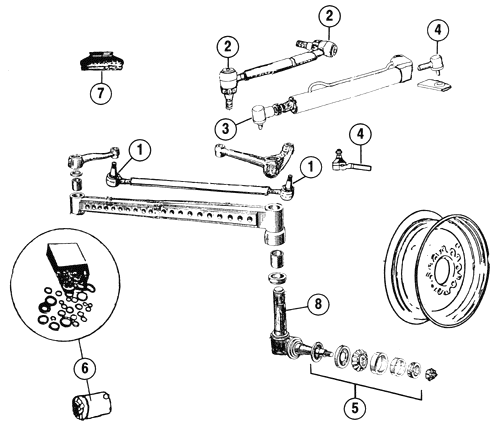

Ref.
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B3312
|
K908071
|
Tie Rod End
|
ALL 2wd models EXCEPT cropmaster
and 1410-1412 (see below)
|
|
2
|
Drag Link End
|
ALL manual steering models AFTER
cropmaster
|
|
3
|
B3313
|
K929057
|
Front Cylinder End
|
ALL power steering models EXCEPT
those
fitted with Transverse Ram
|
|
4
|
B3314
|
K207721
|
Rear Cylinder End
|
Inner Rod End
(2 required)
|
1410-1412 fitted with Transverse
Ram (outer N/A)
|
|
5
|
B3315
|
K962984
|
Bearing / Seal Kit
|
770-780
|
|
B3764
|
VARIOUS
|
Bearing / Seal Kit
includes both 1 3/8" (35mm) + 1 1/2" (38mm) inner bearings
|
880-885-990-995-1190-1194-1290-1294-1390-1394
|
|
B3765
|
VARIOUS
|
Bearing / Seal Kit
|
1200-1210-1212-1410-1412-1490-1690
|
|
6
|
B6905
|
K964935
|
Seal Kit for Power Steering
Pump Reservoir
|
885-990-995-1210-1212
|
|
7
|
B3302
|
VARIOUS
|
Universal Ball Joint Boot
|
|
8
|
B7187
|
K262209
|
Uprated Heavy Duty Axle L.H. / R.H.
A = 10" (254mm) includes 7/8" nut
|
Selectomatic models standard clearance
990-995-996-1290-1294-1390-1394
|
|
9
|
B3774
|
K617157
|
3/4" dia nut
|
Early axles
|
|
B7698
|
|
7/8" dia nut
|
Uprated axles
|
|
10
|
B6807
|
Heavy Duty Wheel 4 1/2" x 16" takes 600 x
16" tyre
|
ALL models with pressed steel wheels
|
|
B6808
|
Heavy Duty Wheel 5 1/2" x 16" takes 750 x
16" tyre
|
