Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
*
|
HYDRAULIC TOP LINK
Are also valiable please call for more info
|
ALL MODELS
|
|

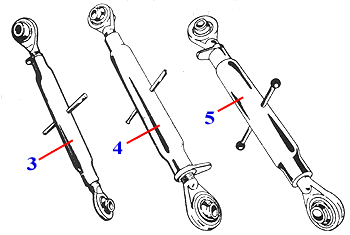

3
|
B315
|
|
CAT 1 - 2 STANDARD TOP LINK
1 1/8'' UNC.
|
B 250 through
785
Standard duty use
|
|
4
|
B1
|
|
CAT 2 HEAVY DUTY LINK
1 1/4'' UNC.
|
474 upwards Heavy duty use (Ripping etc)
|
|
5
|
B2660
|
|
CAT 2 JUMBO LINK
CAT 2 PINS
1 3/8'' UNC.
|
Large Australian & U.S. Models
|
|
B2417
|
|
CAT 3 JUMBO LINK
1 3/8'' UNC.
|
Large Australian & U.S. Models
CAT 3 (1 1/4'' diameter pins)
|
|
6
|
B4417
|
|
CAT 3 SUPER TOP LINK
2'' UNC.
|
CAT 3 Heavy Duty Applications
|
|

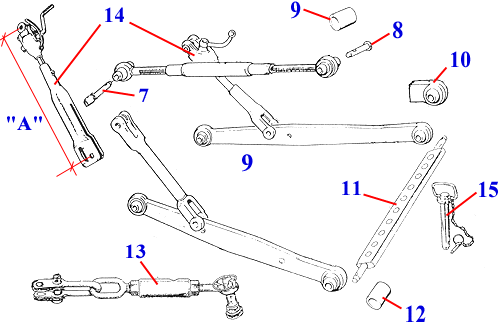

7
|
B111
|
704183R1
|
SPECIAL CAT 1 TOP PIN
|
ALL MODELS with Stepped top pin
i.e. B 250
through 885
|
|
B110
|
704182R1
|
SPECIAL CAT 2 TOP PIN
|
|
8
|
B76
|
|
STANDARD CAT 2 (1'' diameter)
TOP PIN
|
Both ends Australia - U.S. CAT 2 Tractors
|
|
B75
|
|
STANDARD CAT 1 (3/4'' diameter)
TOP PIN
|
Implement end CAT 1 applications
|
|
B2597
|
|
STANDARD CAT 3 (1 1/4'' diameter)
TOP PIN
|
CAT 3 Tractors
|
|
9
|
B353
|
|
3/4'' - 1'' CONVERSION BUSH
|
Reduces CAT 2 Top link to CAT 1
|
|
B519
|
|
1'' - 1 1/4'' CONVERSION BUSH (TOP)
|
Reduces CAT 3 Top link to CAT 2
|
|
10
|
B328
|
CAT 1
|
WELD ON BALL END
7/8'' HOLE
|
AS REQUIRED
|
|
B329
|
CAT 2
|
WELD ON BALL END
1 1/8'' HOLE
|
|
B2591
|
CAT 3
|
WELD ON BALL END
1 7/16'' HOLE
|
|
11
|
B121
|
751764R1
|
CAT 1 HEAVY DUTY LINKAGE
DRAWBAR
|
AS REQUIRED
[ Standard 66cm inside length]
|
|
B124
|
|
CAT 2 HEAVY DUTY LINKAGE
DRAWBAR
|
|
B2722
|
|
CAT 2 (LONG) DRAWBAR
|
EXTRA LONG (76cm inside length)
|
|
12
|
B351
|
|
7/8'' - 1 1/8'' CONVERSION BUSH
|
CAT 1 - 2 - 3 CONVERSION
as required
|
|
B529
|
|
1 1/8'' - 1 7/16'' CONVERSION BUSH
|
|
13
|
B7318
|
STABILISING CHAIN 13 3/8" - 16 1/2"
(34 - 42cm)
Special Design suits 3/4'' + 7/8'' diameter Lower Link Mount hole
|
B 275, 454,
+ ALL 74, 84, 85 & 95 series
|
|
LEVELLING
BOX ASSEMBLIES (COMPONENT PARTS DIFFER FROM ORIGINAL EQUIPMENT)
|
|
14
|
B579
|
STANDARD DUTY LEVELLING BOX - adjust 19"
- 27"
(48 - 69cm)
|
B 250, B 275, 414, 434, 444, 384
|
|
NOTE: World
Wide Series tractors (474 through 895) use TWO
DIFFERENT LENGTHS combined with
TWO DIFFERENT WIDTHS for Lower Fork
Slots i.e. 4 COMBINATIONS:
PLEASE SELECT UNIT REQUIRED FROM DIMENSIONS
BELOW.
|
|
PART No.
|
DESCRIPTION
|
FORK WIDTH
|
ADJUST RANGE
|
|
B2661
|
HEAVY DUTY LEVELLING BOX
|
17mm (11/16")
|
" A " = 56cm - 67cm (22" - 26")
|
|
B7321
|
40mm (1 1/2")
|
|
B5211
|
17mm (11/16")
|
" A " = 63cm -78cm (25" - 30")
|
|
B7322
|
40mm (1 1/2")
|
|
15
|
B408
B404
B405
B410
B412
B415
B416
B417
|
DRAWBAR PIN
|
Dia. x
Effective Length
3/4'' x 3 3/4''
3/4'' x 6 1/4''
7/8'' x 6 1/4''
1'' x 6 1/4''
1 1/8'' x 6 1/4''
1 1/4'' x 6 1/4''
1 3/8'' x 7 1/4''
1 1/2'' x 7 1/4'' |
