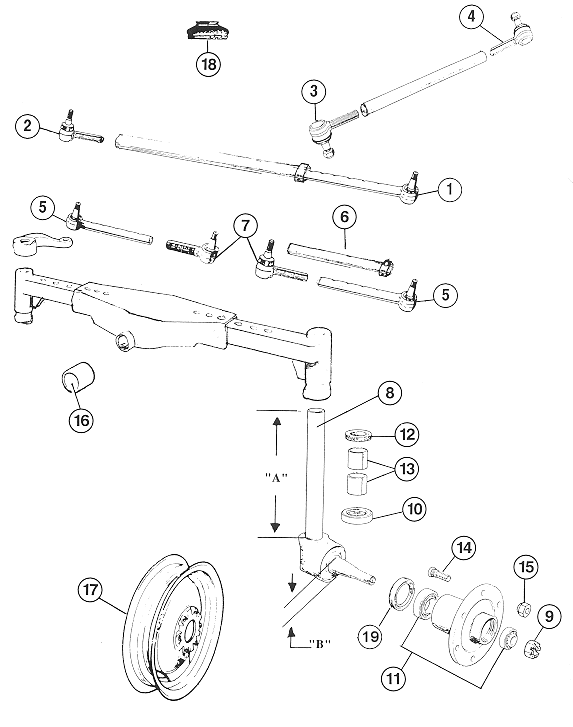

Steering - Front Axle
|
Ref.
|
PART No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B6637
|
3040919R92
|
L.H. TIE ROD END
|
B275, 276, 354,
374, 414, 434, 444, 384
|
|
2
|
B6638
|
3040920R92
|
R.H. TIE ROD END
|
|
3
|
B143
|
3045309R91
|
FRONT DRAG LINK END
|
|
4
|
B144
|
3040922R92
|
REAR DRAG LINK END
|
|
5
|
B6778
|
3116406R3
3125171R2
|
OUTER TIE ROD END
Notched Shank
(2 used)
|
454, 474, 475,
574, 674, 484, 584, 684, 784, 884
385, 485, 585, 685, 785, 885
395, 495, 595, 695, 795, 895
|
|
B1037
|
359984R93
|
HYDRO 100,
696, 766, 786, 886, 966
976, 986, 1066, 1086, 1466, 1468, 1486
3088, 3288, 3688, 5088, 5288, 5488
with 58" to 82" adjust front axles
|
|
6
|
B1038
|
383917R1
|
TIE ROD TUBE
(2 req)
|
|
7
|
B1039
|
384006R92
|
INNER TIE ROD END
(Threaded shank)
(2 used)
|
|
B6780
|
3116407R3
|
454, 474, 475,
574, 674, 484, 584, 684, 784, 884
385, 485, 585, 685, 785, 885
395, 495, 595, 695, 795, 895
|
|
8
|
B7707
|
405840R12
|
LOW CLEARANCE
STANDARD DUTY AXLE
A = 12" (310mm) B = 1 3/8"(35mm)
Suits LH + RH
|
454
with straight axle
HYDRO 84, 474, 574, 674,
475, 484, 584, 485, 585, 495, 595
|
|
B7708
|
527292R92
|
HIGH CLEARANCE
STANDARD DUTY AXLE
A = 15"(390mm) B = 1 3/8"(35mm)
Suits LH + RH
|
|
9
|
B3774
|
427639
|
AXLE NUT - 3/4"
|
|
10
|
B1025
|
405831R91
527295R91
|
THRUST BEARING
|
|
11
|
B3767
|
1094017R92
|
WHEEL BRG
KIT
|
* Inner I.D. = 1 1/8'' |
B275
(From 40695) 414, 434, 444 *
|
|
B3768 *
|
1094015R92
|
WHEEL BEARING KIT
* Inner Bearing I.D.
1 3/8"(35mm) STD Axle
1 3/4"(45mm) H.D. Axle
|
Standard Duty Axle *
454, 474, 574, 674, 475, 484, 584, 485,
585, 495, 595
|
|
B3771 *
|
1094034R93
|
Heavy Duty Axle *
454, 474, 574, 674, 475, 484, 584, 485,
585, 495, 595
Following models are All Heavy Duty
884, 785, 885, 695, 795, 895
|
|
B3769
|
2222K
|
WHEEL BEARING KIT
|
Models with 2.32" (59mm)
OD Bearing
433, 533, 633, 644, 744, 844, 946, 1046
(884S to No. 16528)
|
|
B7058
|
371418R91
|
706, 806, 1206,
826,
756, 856, 1256, 1456D, 560,
766, 966, 1066, 1466, 1566, 1468, 1568,
886, 986 with 2 1/4'' axle, 1086, 1486,
3088, 3288, 3488, 3688, 5088, 5288, 5488
|
|
12
|
B113
|
|
SEAL (King Pin)
|
B275, 354, 414,
434, 444
|
|
13
|
B3344
|
40090D
|
BUSH (King Pin)
|
|
B3345
|
376099R1
|
BUSH (King Pin)
|
454, 574, 674,
475
484, 584, 684, 784, 884
485, 585, 685, 785, 885
|
|
14
|
B3863
|
528803R1
|
WHEEL STUD
|
|
15
|
B3862
|
483879R2
|
WHEEL NUT
|
|
16
|
B3347
|
405570R1
|
AXLE PIVOT BUSH
|
|
B3346
|
3043856R1
|
AXLE PIVOT BUSH
|
B275, 354, 414,
434, 444, 384
|
|
17
|
B6807
|
704675R92
|
WHEEL to suit 600 x 16'' tire
|
|
All European Models equipped with
600 x 16'' Tires
|
|
B6808
|
3114166R91
|
WHEEL to suit 750 x 16'' tire
|
All European Models equipped with
750 x 16'' Tires
|
|
18
|
B3302
|
VARIOUS
|
UNIVERSAL BOOT
|
Fits most Tie Rod Ends
|
|
19
|
B9221
|
704083R92
530104R91
|
HUB SEAL
|
B250, B275, 414,
434, 444, 354, 454
474, 574, 384, 484, 584, 485, 585
with STD AXLE
|
|
|
