50TB

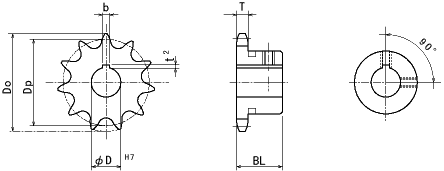

CHAIN TECHNICAL DATA
SIZE 50
PITCH 5/8"
INSIDE WIDTH 3/8"
ROLLER DIA .400"
TOOTH WIDTH (T) 0.343

(Dimension : inch)
Outside
Dia
Do		 Pitch
Dia
Dp		 Sprocket
No.		 Finished Bores Includes Keyway and Setscrew Weight
Lbs.
(App.)
Type Teeth
2.093 1.828 50TB 9 5/8, 3/4 0.30
2.299 2.023 10 5/8, 3/4, 7/8, 1maru.gif 0.30
2.504 2.219 11 5/8, 3/4, 7/8, 1 0.60
2.708 2.415 12 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 0.70
2.911 2.612 13 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 0.80
3.113 2.809 14 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 1.00
3.315 3.006 15 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 1-3/8, 1-7/16 1.20
3.517 3.204 16 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 1.45
3.718 3.401 17 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 1.60
3.919 3.599 18 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 1.90
4.121 3.798 19 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 2.00
4.321 3.995 20 5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 2.10
4.522 4.194 21 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 2.25
4.722 4.392 22 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 2.40
4.923 4.590 23 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 2.50
5.123 4.788 24 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.00
5.323 4.987 25 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.10
5.523 5.185 26 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.30
5.723 5.384 27 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.46
5.922 5.582 28 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.60
6.122 5.781 29 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.78
6.321 5.979 30 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2 3.90
6.521 6.178 31 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 4.46
6.721 6.376 32 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 4.70
6.921 6.575 33 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 4.92
7.120 6.774 34 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 5.06
7.319 6.973 35 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 5.30
7.519 7.171 36 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 5.50
7.718 7.370 37 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 5.62
7.918 7.569 38 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 5.80
8.117 7.768 39 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 6.02
8.316 7.966 40 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 6.20
8.516 8.165 41 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 6.45
8.715 8.364 42 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 6.68
8.914 8.563 43 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 6.99
9.114 8.761 44 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 7.30
9.313 8.96 45 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 8.00
9.512 9.159 46 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 8.51
9.711 9.358 47 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 8.76
9.911 9.556 48 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 9.03
10.110 9.755 49 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 9.33
10.309 9.954 50 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 9.63
10.508 10.153 51 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 9.81
10.708 10.351 52 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 9.99
10.907 10.550 53 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 10.37
11.106 10.749 54 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 10.75
11.305 10.948 55 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 11.08
11.504 11.147 56 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 11.41
11.703 11.346 57 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 11.75
11.903 11.544 58 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 12.08
12.102 11.743 59 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 12.41
12.301 11.942 60 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 13.50
14.292 13.931 70 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 17.81
14.690 14.329 72 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 19.13
16.283 15.919 80 1, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 24.39
17.079 16.715 84 1, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 25.15
19.467 19.102 96 1, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 32.57
22.651 22.284 112 1, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16 41.65
